Postby Fox 21 Alpha » Tue Jul 09, 2013 6:25 am

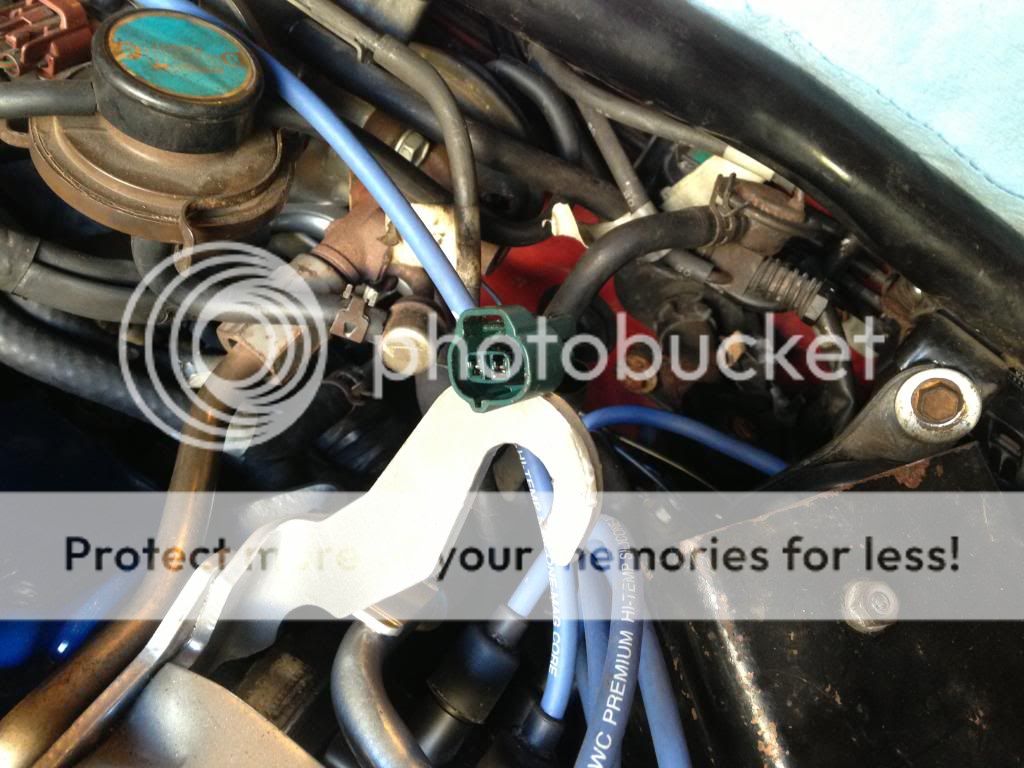

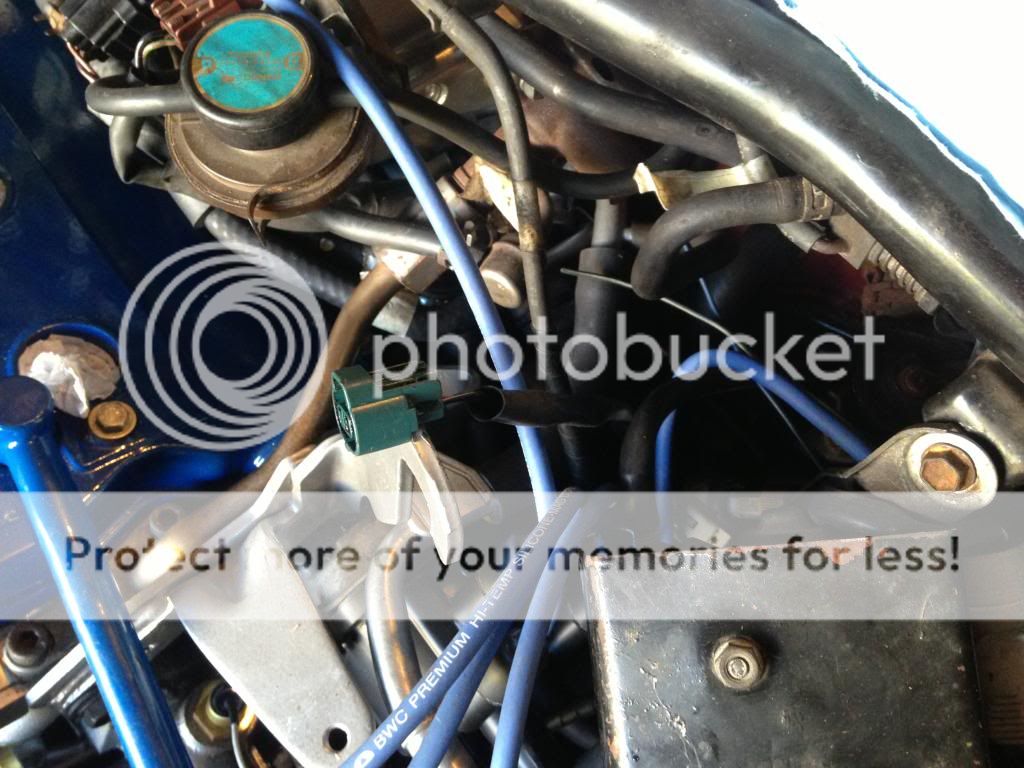

Wondering if you guys can help me figure out where this goes? I've looked all over and through the wiring diagrams and can't find shit.



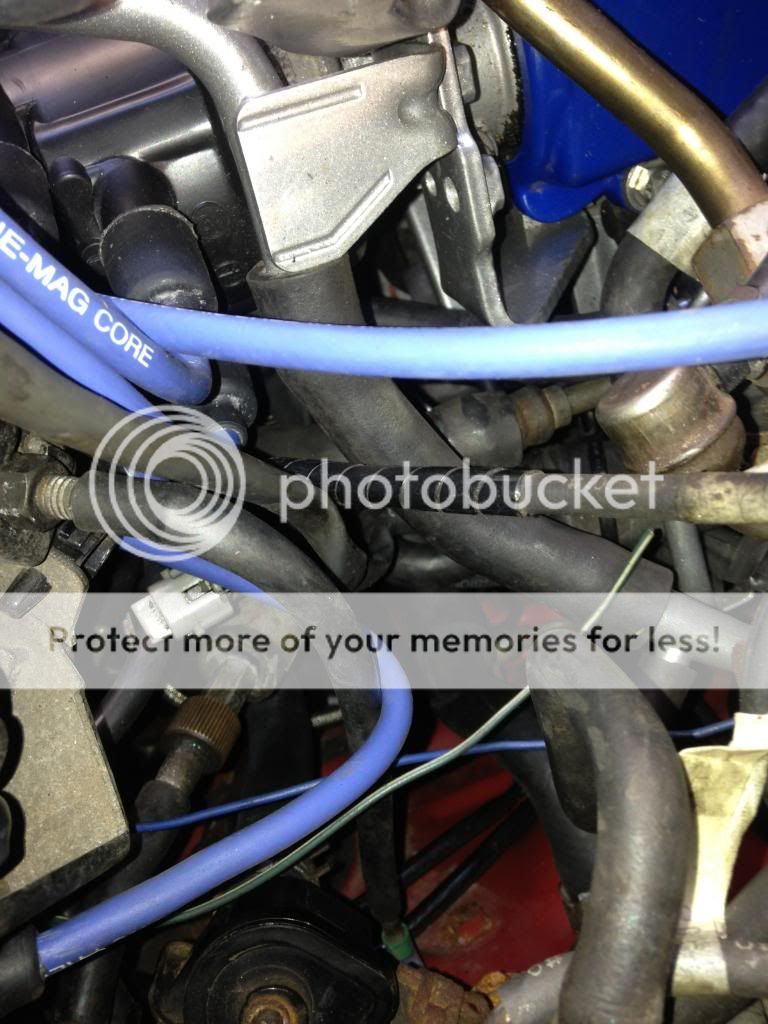

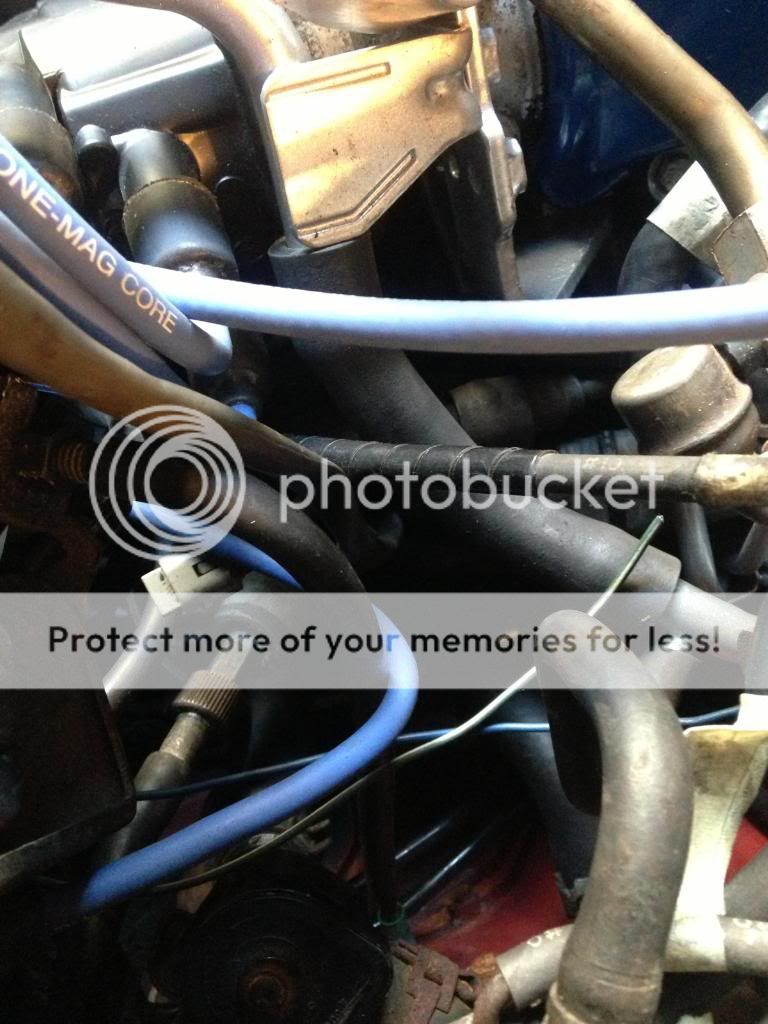

Where it comes from

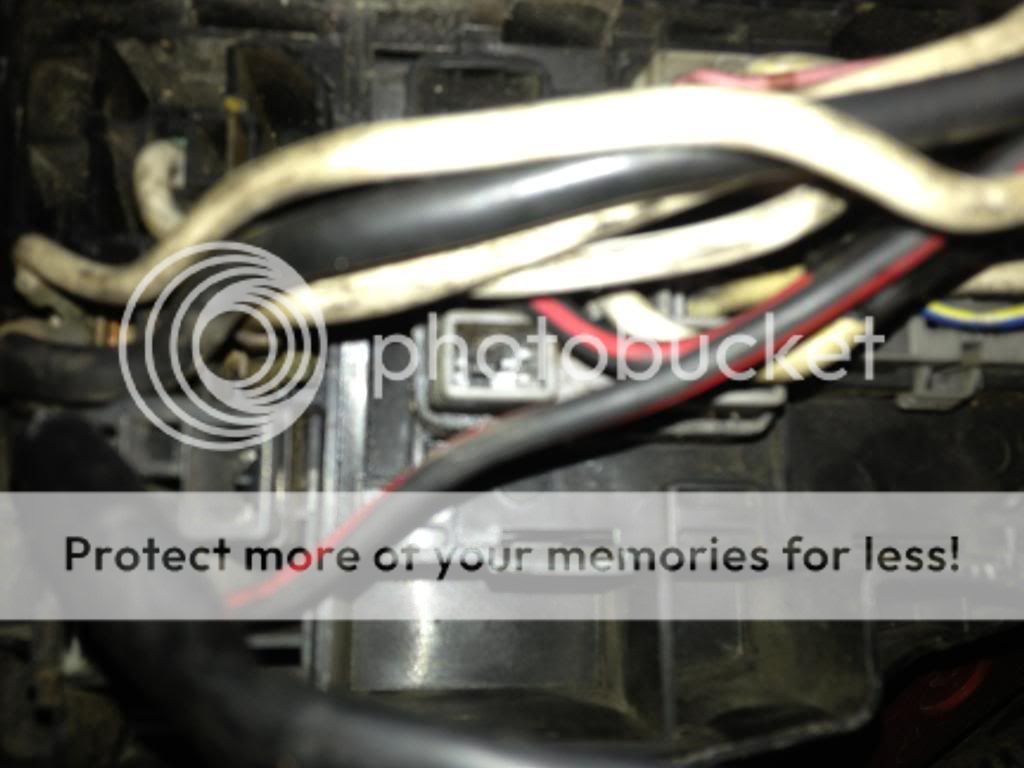

Was also wondering what this gray connector is?



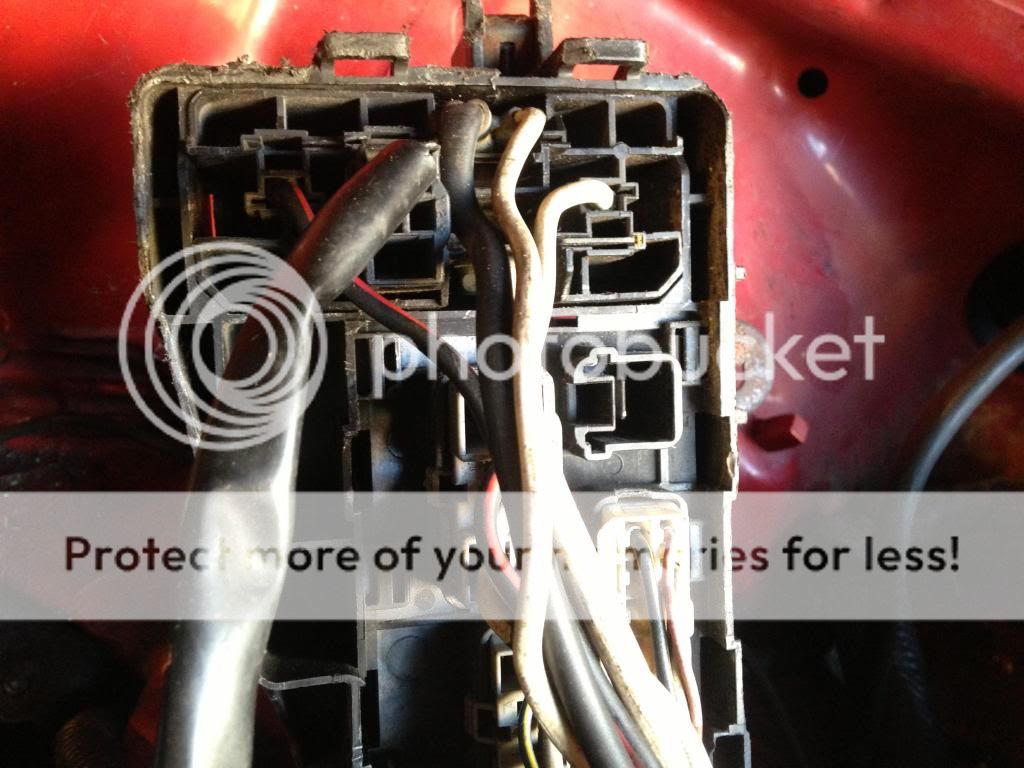

And I can't find the headlight relay connector. I believe after reading some diagrams there should be a wire from open space in the corner of the gray connector right next to it that should run to the relay?


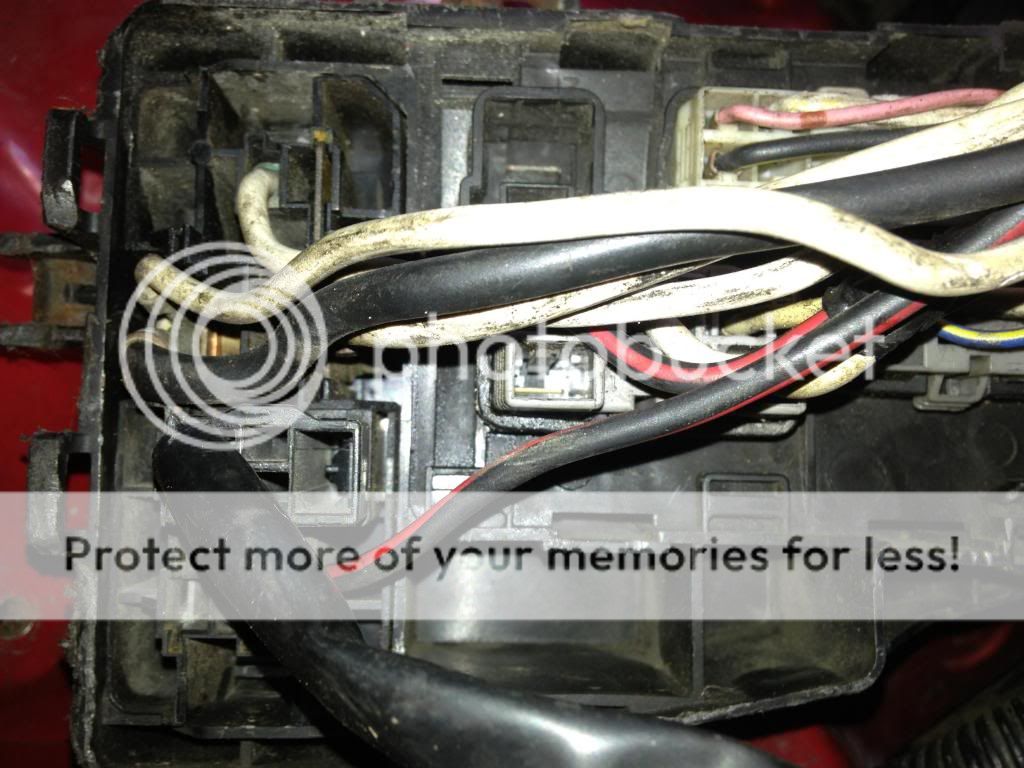

Open connector slot


Bonus points

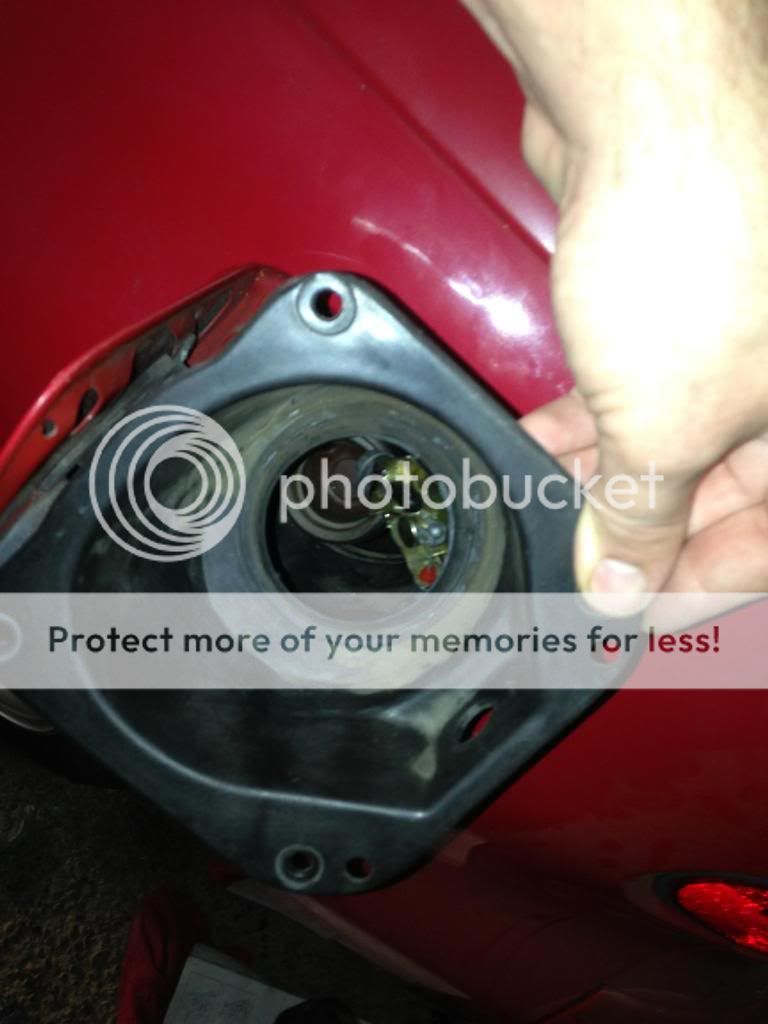

HOW THE f*** DO YOU GET THIS SOB IN? Everytime I put it in the rubber liner gets pulled under the plastic one, or it won't seat up, or the catch won't seat in. I've spent 2 hours on this little piece of shit and its almost the last thing holding me up and getting the car on the road after 3 years. It looks like the neck isn't seated right, but I've jimmed the gas tank around and restrapped it in place and nothing seems to change, it seems to sit where it sits...


Members don't see the above ad. Register now - it's free!
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Tecker185 » Tue Jul 09, 2013 12:18 pm

When I put my gas tank in I left that rubber piece in place. So when I put the tank in I put the filler neck I first.

The blue plug looks like it goes to some sort of switching valve, evap canister or something?

The gray one could be the plug that is on the speedo cable.
93 ST185 2grfe swap in progress
89 ST165
89 SV25
86 AW11 2zzge swapped
86 AE86 1uz swap
89 AE95 sedan
89 AW11 Supercharged
95 Tacoma 2uz swap manual Dually
17 4runner TRD Off Road
Tecker185
Club Member

Posts: 500
Joined: Wed Jan 02, 2008 12:13 am
Location: Fort Edward, New York 12828

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby underscore » Wed Jul 10, 2013 12:14 am

Stock 185 I assume?
★ 1991 GTFour RC ~ "Rebel Scum" ★
It's for sale! http://www.alltrac.net/phpBB2/viewtopic.php?f=64&t=52181
Build thread http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=44216
underscore
GTFour God

Posts: 3822
Images: 0
Joined: Mon Apr 09, 2007 11:29 pm
Location: Kelowna, BC

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Anoo21 » Wed Jul 10, 2013 1:53 am

Green/blue plug seems like it looks like the coil plug. The others i dont know but hope i helped. if wrong i do apologize.
Anoo21
Club Member

Posts: 608
Joined: Tue Nov 03, 2009 6:10 am
Location: Kansas

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby jaydog82 » Wed Jul 10, 2013 3:11 am

What engine, JDM usdm? What year Alltrac?
mine is the red one on the left

authorized AMSOIL dealer @ www.jpautomotive.org
User avatar
jaydog82
Club Member

Posts: 597
Images: 0
Joined: Sun Jun 27, 2010 5:43 am
Location: Bay area CA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Fox 21 Alpha » Wed Jul 10, 2013 7:24 pm

Sorry, its a stock 3SGTE 91, minus the turbo and stuff I changed out reassembling it. The gray one actually looks like its a cap on the end of it that jumps the two wires, as there is no place to connect wires to it and it looks like it has spades in it though. Seems really odd to be hanging where it is unless its used for diagnostics or something.

I was thinking the green one is for TVIS or something of the sort in that back area of the head but can't find anything for the life of me. It is slightly oily like it was in that area.
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby jaydog82 » Thu Jul 11, 2013 3:26 am

Ya the green one could be for the tivis, its very hard to reach from the top. If there are no problems then don't worries about the gray one
mine is the red one on the left

authorized AMSOIL dealer @ www.jpautomotive.org
User avatar
jaydog82
Club Member

Posts: 597
Images: 0
Joined: Sun Jun 27, 2010 5:43 am
Location: Bay area CA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby phattyduck » Thu Jul 11, 2013 4:24 pm

The gray plug may be the condenser (capacitor) for the igniter/coil assembly. If it has a little clip/mount as part of it, it might go on the igniter/coil assembly nearby.

Wire colors for each plug will help greatly in diagnosing where they go.

-Charlie
'89 Camry LE Alltrac 3S-GTE - SV25/ST205 hybrid
'99 4Runner SR5 4WD 5VZ-FE
Previous: '88 Camry LE Alltrac 3S-GE BEAMS, '90 Camry 3S-GTE, '90 Camry DX
User avatar
phattyduck
Established Member

Posts: 1045
Joined: Wed Dec 07, 2005 8:09 am
Location: Pasadena, CA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Fox 21 Alpha » Sun Jul 14, 2013 9:14 pm

Checked my ignitor and coil assembly, they appear to have all their plugs. The wires are black with a yellow stripe and blue with a red stripe. Connector gets 12volts at idle. My car is idling and running like shit, not really drive able.

Also changed out the headlight relay with a new one with no success. Everything else light related works fine including high beams. I'm at a loss on both...
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Fox 21 Alpha » Tue Jul 16, 2013 3:38 am

Connector is the turbo VSV. Its on the back driver's side of the block. Right next to the blue canister. I can't explain how hard it was to find and see, let alone put that connector in. 3 hours with two people, the front right wheel removed for primary access, and my helper using a long thin pry bar to help from above its in. I think I mighta fractured my arm from contorting it around to get up there. It was bad. But its on, and it didn't make a difference. Turns out my ECU pins for injector 1 & 2 had pulled out, so I was running on two cylinders :twisted:

If anyone ever needs help getting to that connector, PM I guess. If its 10 years later and I don't exist on this board, in the BGB around FI-67/87 something like that they have a picture of all the VSV valves and stuff, and then there's a page of the turbo VSV with a picture of it. Good luck.

Still no idea what goes out from below the headlight relay on the fuse box. Anyone with a stock fusebox willing to go out and snap a picture of the bottom of theirs? :)
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby alltracman78 » Tue Jul 16, 2013 6:44 pm

That has nothing to do with your headlight problem.
Your relay isn't causing the problem.........
And the relay doesn't have a single connector, it uses 3 or 4 different ones.
I already told you this shit over on celicatech...................................................


Check the bulbs, but it's probably your switch [on the steering wheel].
User avatar
alltracman78
GTFour God

Posts: 4677
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Fox 21 Alpha » Sat Jul 20, 2013 11:00 am

I changed the headlights, it was the bulb. I know the relay has 4 outputs its self. I'm talking about on the bottom of the fuse box, whats circled in red and blue. I can see maybe something not being where its circled blue (even though it has a pin). But I have a hard time believing nothing goes where it's circled red though. Wiring diagrams from what I can understand make the only logical connection go from that blade out put to the relay, which without cutting my fusebox in half would be where that gray connector is. Diagrams also show a connector going in the slot where the red circle is. I currently have it jumpered and everything works. Didn't try it without the jumper yet cause I didn't wanna mess with it but I suppose next time I get a chance I can try.
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby alltracman78 » Sun Jul 21, 2013 10:43 am

There's nothing circled in red or blue.....
Neither of those places is supposed to have a wire, they're both blanks.
You don't have to cut your fusebox in half, it comes apart.
You either can't read wiring diagrams or have the wrong one, neither pin has anything to do with the headlights. Or with any other circuit for that matter. And I don't see what your fixation with your jumper is; your low beams weren't working, then you replaced the bulbs and they were. Pretty simple deduction..............................................
User avatar
alltracman78
GTFour God

Posts: 4677
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby Fox 21 Alpha » Sun Jul 21, 2013 12:05 pm


I know the fuse box comes in half. There's still shit under inbetween those two sections. I have the right diagrams, I know how to read them. They aren't a solve all. My headlights work. Thanks for your help.
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Re: Wire Connector ID (Green plug), Fuse box headlight relay

Postby alltracman78 » Sun Jul 21, 2013 2:50 pm

The shit inbetween comes apart too.

And if you think the diagrams are telling you there are supposed to be wires there; either they're crappy diagrams or you don't know how to read them.
The only good diagram is the factory wiring manual. It has all the connectors and everything explicitly diagrammed out.
And it clearly shows there are no wires there.
User avatar
alltracman78
GTFour God

Posts: 4677
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma
