Fog Lights on - without the head lights on

Visual Styling, Spoilers, and rims

Fog Lights on - without the head lights on

Postby WarTowels » Sun Oct 28, 2007 6:59 am

Here is a at best, a very poor write up from ToyotaCelicaOnline:

http://toyotacelicaonline.com/fogs.htm

It's pretty sketchy, and I don't want to hack at my wiring like that. However, I find the concept very interesting. I think it would be very sweet if the fog light button acted independently from the rest of the lighting.

So if the button was on, the fog lights would be on, if the button was off, they would be off.

Anyone done this?

-Towels
Members don't see the above ad. Register now - it's free!
2003 S2000
1985 300TD
User avatar
WarTowels
Gold GTfour God

Posts: 6443
Joined: Tue Aug 17, 2004 4:30 am
Location: I live in a garage.

Postby Corey » Sun Oct 28, 2007 2:26 pm

Do your fogs come on with the light switch at the Dash ----- Mark?

Because i just tried and can turn my fogs on without the headlights np
Last edited by Corey on Sun Oct 28, 2007 9:16 pm, edited 1 time in total.
User avatar
Corey
GTFour God

Posts: 4118
Images: 49
Joined: Sun Feb 11, 2007 12:12 am

1989 Toyota Celica

Postby bigacuralvr » Sun Oct 28, 2007 4:01 pm

Canadian spec cars used the fogs as "daytime running lights" - as their saftey option.

That writeup is good - but sure is alot of work. Really, all you have to do is run a wire from your driving lights over to the relay to "switch" it on when the parking lights are on. I suppose I could do a decent write up - if there is enough people looking for this.

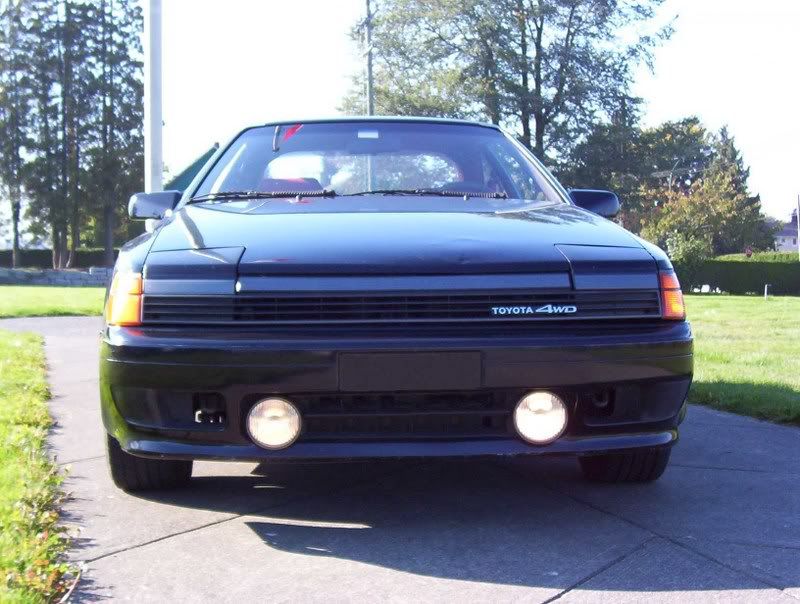

Here's a pic of my 90 with the relay re-wired and my JDM fogs yO!



Enjoy - Brett
1990 Celica AllTrac Turbo - Sold to a new home :(
1999 Yukon - Family Mobile
2000 Dakota Club Cab - Snow Machine
2006 Scion xB - Pimp Box - HP2BSQR
2000 GSXR - Go Fast on 2 Wheels
User avatar
bigacuralvr
Established Member

Posts: 1298
Joined: Thu Mar 10, 2005 12:55 am
Location: Evans/Greeley CO

Postby etantshi » Sun Oct 28, 2007 4:50 pm

That write up is good, but it's not hard at all. It took me about 10 minutes to do that about 4 years ago.
-----
André B.
1991 ST185 (down but not out)
1990 ST185 (lost, but not forgotten)
1996 RZN140 (the daily)
2004 Yamaha R6 (needs a battery)
etantshi
GTFour God

Posts: 5749
Joined: Fri Sep 03, 2004 1:05 am
Location: Augusta

Postby TEAMFaint » Sun Oct 28, 2007 5:42 pm

Correction:

Canadian cars did NOT use the foglights as our DRL's, we used the bumper lenses (signals) as our DRLs.



For you US gents do your fogs only come on when your headlights are flipped up?
We have a button that we just push in for the fogs to activate.


I currently have my JDM ST185 fogs running as my DRL's since it was easier than buying the kit for the signal lights, and there is actually an easier way than that write up.

I can't say exactly how it was done, but a set of wires were just run from the battery in the engine bay to the foglights up front to act as a continous power source; thus the lights are always on.


current project: 94 st205
User avatar
TEAMFaint
Club Member

Posts: 392
Joined: Thu Oct 27, 2005 3:28 am
Location: Alberta, Canada

Postby WarTowels » Sun Oct 28, 2007 9:42 pm

That write up is setup poorly, has crappy dated pictures, spelling errors, and has people wrapping wires around fuses. That's a good write up in your eyes?

Regardless, I would be interested in another method with the fog lights coming on with the parking lights, or independently.

-Towels
2003 S2000
1985 300TD
User avatar
WarTowels
Gold GTfour God

Posts: 6443
Joined: Tue Aug 17, 2004 4:30 am
Location: I live in a garage.

Postby Corey » Sun Oct 28, 2007 9:51 pm

How are the gt4 lights set up? mine come on with the parkinglights. And because mine is <december '89, i didnt need DRL. so its still stock.

Anyway to get the same stuff and wire it up like a gt4?
User avatar
Corey
GTFour God

Posts: 4118
Images: 49
Joined: Sun Feb 11, 2007 12:12 am

1989 Toyota Celica

Postby Rick89GTS » Sun Oct 28, 2007 10:01 pm

^ Pretty sure the JDM set-up is different from the USDM version.
For the ST165, the JDM ones could turn on their fogs separately but I had to re-wire mine.
User avatar
Rick89GTS
GTFour God

Posts: 3747
Joined: Sun Aug 08, 2004 6:28 am
Location: Great White North, Canada

Postby gearhead313 » Sun Oct 28, 2007 10:14 pm

all I had to do was insert a jumper wire from 'power with the key' to the switched side of the fog light fuse... you could jump it from parking lights too if you wanted.
ST165 counter:
#2597 - fail
#3193 - fail
#xxxx - sold
#4598 - sold to Canada eh
[img]http://img.photobucket.com/albums/v123/gearhead313/turbosticker.jpg[/img]
User avatar
gearhead313
Established Member

Posts: 1358
Joined: Tue Aug 10, 2004 8:17 pm
Location: Pittsburgh, PA

1988 Toyota Celica

Postby WarTowels » Mon Oct 29, 2007 12:17 am

^Care to explain that in further detail please?

-Towels
2003 S2000
1985 300TD
User avatar
WarTowels
Gold GTfour God

Posts: 6443
Joined: Tue Aug 17, 2004 4:30 am
Location: I live in a garage.

Postby Azonic » Fri Nov 16, 2007 1:19 pm

Means...

Take a wire from the hot side of your Marker light relay or the Main power relay,

Remove the factory trigger wire from your fog relay, Run the new wire to the trigger side of your Fog light relay...

Make sure to secure and make safe the factory tricgger and Done...

However,
If you rewire the switch to take the power from the markers, then the switch direct to the trigger side, you can control if they come one with the switch, but make it so you can't leave them on, unless you have your markers on..

I am going to run mine to the Marker lights...

so, dusk and dawn will have markers and fogs (on switch)...
and lights up with both (unless I turn them off)....

But why would I do that after all that work? lol
1988 ST165
1990 F350
2002 VW Jetta TDI
2002 BMW K1200RS - Dakar Yellow!
and how many MR2's did I have? I forget..
Azonic
Club Member

Posts: 91
Joined: Mon Oct 15, 2007 1:25 pm

Postby Shaggz00 » Fri Nov 16, 2007 9:40 pm

that's a lot of effort for the 185!

In the 165 it's not necessary to run a wire to some other power source. The plug has four pins I believe... I just jumped two of the pins and presto! It took all of 5 mins (only cuz I had to take the glove box off). I pretty much just tested each lead until I found the combo that worked. I will take a pic when I get my car back home, Hopefully Sunday.
-Avi-
'88 ST-165(Black) - Sitting... Waiting... Quietly... in the garage under 2 inches of dust...
'88 ST-165(grey) - gone to rusty Celica heaven
'91 MKIII Supra - 98% completion!
Shaggz00
Gold Member

Posts: 1682
Joined: Mon Aug 09, 2004 12:13 am
Location: Silver Spring, md

Postby klue » Sat Nov 24, 2007 8:07 pm

All the st185's ive seen in Canada use the fogs as DRL
facebook.com/xiiimotorsports
#xiiimotorsports ON instagram
User avatar
klue
GTFour God

Posts: 3893
Joined: Thu Nov 04, 2004 9:47 pm
Location: Greater Toronto Area

Postby Rick89GTS » Sat Nov 24, 2007 9:14 pm

Shaggz00 wrote:that's a lot of effort for the 185!

In the 165 it's not necessary to run a wire to some other power source. The plug has four pins I believe... I just jumped two of the pins and presto! It took all of 5 mins (only cuz I had to take the glove box off). I pretty much just tested each lead until I found the combo that worked. I will take a pic when I get my car back home, Hopefully Sunday.


That's right, Shaggz00, you helped me out with this on my 165. You are the man :smokes:

How-to: ST165 Fog Lights Mod (independent fogs)

DISCLAIMER: I am not an auto electrician or anything like that. This worked on my car, so use all precautions and I take no responsibility if you mess up your car!

1) The ST165 fog light relay is located up behind the glove box. You have to remove glove box to reach the relay. I tested it with a jumper wire to Pins#1 & 2. (Note the orientation of the locking lug on the block plug)

2) Disconnect battery after testing for the live pins.

3) Disconnect plug from the factory fog light switch. Then run a wire from Pin#1 to the terminal on the back of your fog switch and run another wire from Pin#2 to the other terminal on the back of the fog switch.

4) Connect battery and enjoy your independent fogs...
*Just remember, they are manually operated, so don't forget to turn them OFF*

Last edited by Rick89GTS on Thu Mar 24, 2011 10:17 pm, edited 6 times in total.
User avatar
Rick89GTS
GTFour God

Posts: 3747
Joined: Sun Aug 08, 2004 6:28 am
Location: Great White North, Canada

Postby RedCelicaTRD » Sun Nov 25, 2007 4:55 am

Someone has posed a better way of doing that before. I can't remember which board it was on, but the process was faster, cleaner and less ghetto.
Wayne
1990 All Trac
2017 SRT Challenger Hellcat
Grumpy Moderator
RedCelicaTRD
GTFour God

Posts: 3947
Joined: Sun Aug 08, 2004 6:58 pm
Location: Syracuse, UT
