'91 All Trac Project "Mia"-Engine Rebuild Time

Talk about your project car here

'91 All Trac Project "Mia"-Engine Rebuild Time

Postby Fox 21 Alpha » Sun Jun 14, 2009 5:08 am

Figured I might as well finally get around to creating a project thread for this car, especially since I'm already starting to forget what I've done on what days. Its probably gonna be pretty scattered while I collect the photos and stuff, so give it a few days.

Anyways, for a background, I found this car on Craigslist during the summer of '08 in the local area for like $4800. After a couple deals on some Del Sols and stuff feel through, I ended up going back to this car. Negotiated down to 4k, and the seller was willing to hold it for me until summer of '09 so I could spend my money on school stuff. Turned out well, since the Navy ended up failing in getting me on AT which I was counting on the money from to buy whatever vehicle I ended up getting. Anyways finally ended up borrowing money out of my retirement account (Stocks blow right now anyways so its not gonna be making any money for awhile), which works out well, 3% interest, and you pay it back to yourself, only money you lose is a $50 fee. Anyways the car, yes, ended up buying it on 6/4/09, and how it towed the 30 miles back to my house (ok, not so local, but friend owes the towing company, I got a good rate).

So now its sitting on the street infront of my house (which happens to be a hill) with some random truck license plate thrown on from the seller way back when to keep his neighbors happy, and expired tags and inspection from 02. So now the race is on to get it fixed before someone finally calls it in or the city sees it and tries to tow.

Known Issues at Purchase (Car has been sitting for 5-6 years):
Turbo Oil seals are blown, its throwing oil into the air intake/tb/engine
Rusted brake line in the front
Some rust under driver side rocker
Alloy Rim needs fixed
Idles like crap
Needs a new battery

More Discovered Issues After a Few Hours of Work:
Rotors and pads are gone, no resurfacing those bastards

Hood Insulation is coming apart and ending up in weird places on the chassis

Exhaust Needs atleast one hole patched/fixed, rear exhuast is going to need dropped and inspected

Broke off 3 bolt heads in cat. convt to turbo. One was already missing
:shrug:

Rounded the A/C. bracket bolt, as well as the front engine support mount bolt. Another engine support bracket bolt is disfigured and needs replaced. Infact, there's a shitload of bolts either broken, rounded, or just flat out missing on the car (Radiator fan was attached via one bolt). I'm not even going to bother to list the rest, even though I prob will so I know to buy anyways.

Catalytic Convert needs new seals.

Coolant hoses are nice and rusted and dirty on the inside. Uh.....

Oil residue is in the intercooler, and probably the rest of the air intake system from the turbo on.

Fog lights don't work.

Missing some brackets for the righthand fuse box (like all of them, like it was just wedged next to the battery). All of the fuse box cases also need new lids, as they're either cracked or have broken off tabs, or both. They'll hold for now though.

Needs a paint job. :(



So my first order of business has been to try and remove the bad turbo, and replace it with the one I got used. Hopefully the used on works. I've been cleaning up the old turbo in my free time. Using wire wheels to polish the exhaust side, and cleaned the intake side best I can. Had the exhaust manifold that came with it cleaned at NAPA's shop for $15, looks like brand new, so trying to get the turbo to look nice too. It was missing 3 studs, and another was broken off. Got the broken one out, and tapped new threads in. Also bought 3 other studs incase the ones on the car don't come out.

So as of 6/14, I got the exhaust from the turbo to the mp/second part, idk, its like the first half. Also have the cat conv off, as well as the intercooler. A/C has all its bolts to the car loosened, but the bracket bolt got rounded, so its not going to get moved out of the way anyways for the turbo removal (per BGB). The clutch slave cylinder also isn't going anywhere, because the first bolt holding the hydraulic line to the block just turns, like there's a nut on the other side of it, but I can't find one on the back, so it just turns. But doesn't come out. I don't even know why the hell I gotta take it off in the first place :shrug:

Coolant was also drained. Nasty. Either extremely dirty, or has oil in it, or both. Also went to remove the turbo oil hose from the pan. Thought oil might pour out of it (haven't drained the oil yet), and I was right, it started leaking as I was working the hose off. BGB didn't say to drain the oil, or maybe it did and I didn't remember, so I drained the oil. Which overflowed the drain pan I was using, partly because I'm on a hill I guess, but still wouldn't have fit. Ran in the house and found a jug to catch the last bit. etc etc. Needless to say I split a good amount in the street, and also a good bit on my porch transferring it jugs. That was nearly two days ago. Still have the stains. Sum bitch.

The turbo is completely disconnected now, save for the oil hose(?) coming from the block on that huuuggggggeeeee ass nut. Gonna try and just disconnect the hose from the turbo itself instead. The bolt for the turbo bracket to the block is apparently not there (I'm finding numerous missing or loose bolts, clamps, etc). However the turbo will not come loose. It will slide down an inch or tow, then comes back up to nearly its resting position. Have only gotten it about a inch down the studs from the exhaust manifold. I'm guessing the bracket is pushing against the block, and the further down it goes, it just wedges and slides back up. Not sure how I'm going to get the bracket off the turbo though. :|

Some pics.

Oily turbo hose to intercooler.

Oily Air Hose from turbo to air box if I remember right


Rusty rotors. The light colored rust is the from pads rubbing the rotors because I had to use the ebrake when I moved it. :twisted:


Pic of the Engine bay and removed parts after I took some stuff off the otherday. I'll get some updated ones.








I was able to start the car before disassembly, actually fairly easier then last time when I was looking at with the seller. Still idles the same rough. Hopefully its nearly out of gas. Battery will not hold a charge though. Moved it backwards about 5 feet and then drifted/drove in 1st gear the 5 back down the street. The wheels turn and I guess the tranny and diff work :wink: . It seems the more I take this car apart, the more money its going to take. I originally wanted it on the road within a few days. Then I found out it needs $400 in brakes. Then the exhaust is going. So probably another $400 or so, and probably going to have to be that no name motoria or whatever the hell shit, since that's about only completely SS exhaust system under $750 I can seem to find really. I got lucky and only had to pay a total $3750 for the car, even though its really worth only about 3k, but still cheaper then 4k though. But my budget didn't include all this extra stuff to get on the road, I wish I would have known, I would have borrowed more money. I'm hoping the end of the month now to get it on the road. But even after its fixed, still about $350 just to get it registered and insured, then another $100 on inspection and getting the wheels aligned/retake emissions/etc. Fawwwwwuck.

But I want it to get it right first time I guess and make sure its all good, since its going to be taking 450 mile road trips to VA, and back, almost right off the bat. Seems my only consolation is every single bolt I tighten, every hose I clean, every crusty rusted ass nut I clean and fix, every part I replace, every fluid changed and every detail I inspect makes the car just a little more reliable, just a little more sturdy, and a little more ready to hit the ground running, and give me a little piece of mind.

Plans and parts list and all that to come. Open to suggestions ideas etc.

Album of pics of car in the sellers yard, and two audio clips of it running. http://s606.photobucket.com/albums/tt14 ... ll%20Trac/
Members don't see the above ad. Register now - it's free!
Last edited by Fox 21 Alpha on Wed Oct 05, 2011 2:00 am, edited 5 times in total.
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Postby Fox 21 Alpha » Mon Jun 15, 2009 2:50 am

Finally got the turbo off today. I ended up just taking off the alt bracket which let me take off the exhaust manifold which let me simply pull up on the turbo, and the oil lines slid right off (took the nuts off beforehand). I took the old turbo in the basement, and got the elbow off. Gonna take it to NAPA tomorrow to have it cleaned.

I'm still not sure what I'm going to do about the cat conv. It looks like shit, and def needs some serious cleaning, just to even get in new gaskets and put it back on. However I also gotta decide what I want to do with this exhaust, as if I end up getting a new system, then I very well may not use the old cat/downpipe set up. Lot of money, and more money=more time till its on the road, which = :( Going to have the elbow cleaned anyways, it should be less then $20. I guess I could clean the cat best I can, and throw that pos back on and maybe get lucky and patch that hole in the exhaust. If that could hold up until for a bit until I get a new exhaust system...... but I guess I should also finish dropping the rear exhaust first and check for any holes in that too.

The "new-er" turbo is just about as cleaned up as I can seem to get it with the wire wheels and drill. Some areas I can't get to to shine up, but guess it will have to do. Gonna put a few more minutes cleaning it and it should be ready to go. Going to use the replacement studs I bought, since the ones on the old turbo are fairly rusty. New ones are slightly shorter and ever so slightly looser, but it should work out. My major concern is the turbo fell/rolled off the end of the work table a few days back. Didn't seem to even leave a mark on the iron housing, but it did fall prob 4 feet onto concrete. I hope it didn't unbalance it or anything, otherwise I'm really f**ked.

Still have yet to ID where the two mystery bolts came from. Also have not come up with a solution to the rounded A/C bracket bolt. I may just leave it and deal with it in the future.

Not sure how I'm going to clean the coolant system out. I'm planning to run some water with a tad of dish soap through the A2A intercooler, then finish up with a final rinse of some distilled. Not sure about the rubber hoses though. Looks like there's some decent amount of particles stuck to the sides in some.

The vac hoses on the old turbo were also oily, which makes me think that oil got into the vac system. Not a clue what to do on that one....

Going to the dealer tomorrow to see if I can get some gaskets for the sides of the replacement turbo, and see how much they want for an exhaust manifold gasket. If its too much I'll use the little private auto parts that usually has good prices or rockauto I guess.

The $300-$400 brake job is still weighing heavily on my mind. I'm picking up all the extra hours I can to try and increase my income so I can start driving this thing, but thats a slow process with pay periods and all, and not to mention it seriously cuts into the time I can spend working on the car anyways.

I'm just trying to get it on the road right now, not sure about the future. I wanted to get it back to stock just so I can see how that feels and then maybe do some light upgrades but keep it a DD. But looks like some things are gonna have to be improvements right off the bat (brakes, maybe the exhaust, etc). Didn't really want to seriously mod it since the interior is in such nice condition (power windows SCORE!!!!!!) compared to my 83, and didn't want to end up having to rip out the A/C and nice seats and shit to make it a decent track/rally car. Was going to orignally get this on the road, do some fun and light upgrading to give it a little edge, and then work on the 83 into a rally car. But idk the AWD and turbo will probably be very tempting. But for now I guess I'll try and focus on getting it on the road.

Pics:





The bastard rounded bolt

Mystery Bolts....I took them off something....now if I could just figure out what.....

Old Turbo

Oily Vac Hoses from Wastegate Actuator

The Exhaust

The hold can easily be made bigger.....

I took this off by the battery. I thought it was the igniter.....s.......?.... :shrug: .....but found that bolted to the engine bay/firewall in the back. I just kinda found it interesting looking. Not a clue what the hell it is or does though.


Dirty Cat. Conv.

Dirty Coolant Hoses. Tried Best I could to get good pics. Cellphone cameras aren't the greatest though.


I'ma go try and read up/find a "high flow cat. conv." I believe its called, and see how much those cost and stuff. And then bed. Long day work today, and even longer tomorrow :|

hCD6z
Last edited by Fox 21 Alpha on Mon Dec 17, 2012 5:23 am, edited 1 time in total.
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Postby rrain3288 » Mon Jun 15, 2009 6:59 am

wow the old owner of that car should be shot. how could they let that get that bad :cry:
Why me!!!!
92 Celica Alltrac-gen 3 swap
User avatar
rrain3288
Club Member

Posts: 251
Images: 0
Joined: Mon Feb 23, 2009 4:51 am
Location: Tucson AZ

Postby mx6er2587 » Mon Jun 15, 2009 7:15 am

glad you finally brought it home :)

not sure where to start and I'll make some more comments later but here goes:

mystery bolts: did you pull the stock strut tower bar? those look like the ones that go in the center of it. Might also be to wire harness brackets somewhere. Probably not critical bolts.

the Pieces you thought was the ignitor are the fuel pump and injector resistor packs. Just make sure they get plugged back in.

Fuse box. Mine is just chilling too no brackets. Works fine but f you want the brackets there is an alltrac in feezles (junkyard on pa/oh boarder)

cat: your going to need a cat to pass emissions around here. The alltrac has two cats stock. The primary one attached to the turbo and a secondary further down in the exhaust. you only need one to be legal. So if you buy an ebay SS exhaust it will replace the secondary cat. Ebay downpipe will replace your primary. A high flow cat will run you about $100 and will need to be welded in place of your secondary cat. Personally I would probably opt for and ebay downpipe and have a local shop make you an exhaust with a cat. maybe 1st try engineering? They're a local performance shop thats supposed to be very good.

Turbo gaskets: toyota rapes you on these. 30 a pop. I haven't found a good solution to this yet.

blown turbo seals means oil in the intake system so it very possible to get oil in the vacuum system. Might just want to replace all the lines you can. Just buy a few feet of varying size line and have at it. Should cost you less than $20 to replace almost all of them.

brakes: try 935motorsports for the rotors, Robert has pretty much the best prices around on them. For pads your really can't go wrong with your average $20-30 metallics. Don't bother with ceramics, and only get performance pads if you actually think your going to use them.

turbo: if the new turbo still spins freely its probably ok. you'll know fast if its not.

oh and I always just take the alternator bracket and exh manifold off. Screw removing just the turbo. not worth it.

where in pittsburgh are you at again?
mx6er2587
Established Member

Posts: 1162
Joined: Sun Jan 27, 2008 12:08 am
Location: Pittsburgh PA

Postby DudeMan » Mon Jun 15, 2009 6:45 pm

Glad to see that All Trac in the hands of someone who will actually take care of it.

Good luck man.
User avatar
DudeMan
Club Member

Posts: 716
Joined: Mon Feb 02, 2009 5:41 pm
Location: Edmonton, AB Canada

Postby Fox 21 Alpha » Tue Jun 16, 2009 12:24 am

I'm in Carrick, off of Brownsville.

Didn't get much done today really. Took a quick look at my bolts, gonna make a list tomorrow hopefully so I can head to the hardware store and get the replacements that I need so far (Somehow I don't think one bolt is gonna hold the radiator fan on for long......). Dropped off the downpipe elbow at NAPA to get it cleaned with the gasket for it as well. Gonna pick that up tomorrow. Also ordered in 3 gaskets for the turbo from the dealer today, the two smaller side ones, and the larger oil inlet hose thingy one. Not too bad, $20 for all three. Then $35 for the damn exhaust manifold gasket (I didn't like that carbon burn on the outside of the old one, hopefully its from just using a shitty gasket or not tightening the manifold down enough, but eitherway wanted to make sure I got a good one), which is funny, it was $25 when he first looked it up but somehow at check out it grew $10... :|

Also going to out to Foreign Auto (local owned parts store) and pick up all the exhaust gaskets and see if they got anything for the cat conv. gasket. I think for now I'm going to just try and clean up the cat and exhaust system best I can and throw it back on. Hopefully when I drop the rear section there won't be any more holes, and I'll find a solution to the current hole. And then hopefully that will hold out for maybe a year give or take, and I'll just move the "Upgrade Exhaust" bullet higher on the mods/aftermarket/shitforwhenIhavemoney list. :D

So in theory, all that's left (all....lol......ah I love how I kid myself):
Replace Fuel Filter
Oil and filter change
Clean/replace coolant and vac hoses
Coolant and other fluid change
Put in new turbo gaskets and install
Finish dropping, inspect, patch, and reinstall exhaust system
Replace the bad brake line
New dizzy cap and plugs
Fix/replace all the little nuts and bolts missing/broke
Fix the bent alloy rim....if you can even do that....we'll see what the tire guys say....
Pay for insurance and registration
Put some new gas in the tank
Wipers and fog lights and stuff
Car wash.....thrice......
Battery
Effin rotors and pads
User avatar
Fox 21 Alpha
Club Member

Posts: 255
Joined: Sat Aug 23, 2008 5:21 am
Location: PA

Postby Fox 21 Alpha » Fri Jun 19, 2009 5:03 am

Well I got a battery for $10 at a salvage yard. Not the exact size, but looks like it will fit hopefully, I just need it to do some labor cranking while I'm tuning the engine and such, figured there's no point in buying a new battery then having it just do cranking and not much else.

Buts that if I ever get there. I got some new gaskets from the dealer. 50 some dollars for the exhaust manifold gasket, the turbo oil gasket, and the two water/coolant gaskets. Special order for all three. Then they called me back, said they got them in, but the exhaust manifold gasket comes in two halves, and they only got one half, so they ordered the other one. Ok, so I go to pick them up the next day when the other half is in. And of course I have to pay for it. Apparently its $35 a half, not for the whole thing. So the guy says I'm gonna have to pay for the other half, but that'd make it a $70 exhaust manifold gasket, which is unheard of. He also said it's his fault making me think I was all paid up and then having to come and pay more, so he gave it to me at wholesale plus tax, so $20 for that side, $55 total. He also said if I ever need anything else for the build just to come back in and talk to him and he'll give it to me at wholesale to make up for it. So I got raped, but the guy was nice enough and hopefully he'll help me out again. Damn thats a long paragraph.

So anyways went downstairs, finished cleaning up the turbo as I wanted and stuff. Anyways I was spinning the turbine for whatever reason, and heard it pinging/rubbing/hitting shit. Seems like there's next to no clearance on the intake side of the turbine. Less then the other two CT26 I have sitting on the table (Old one off the car, and the owner threw in a single entry CT26 with a cracked exhaust side by the waste gate, he was originally gonna try to hybrid them or some shit). So I spin it some more and mess around and stuff. Def is rubbing or pinging or hitting something. Doesn't seem to be all the time, if I'm lucky I can get some spins in with no noise, but its usually hitting a little. Seems to be very light, but still def hitting it. I took some videos of me spinning it, including from both sides. Also took a vid of the shaft play. If I try and press it against the wall while I'm spinning it, I can almost get it to the point where it will rub enough it won't spin.

So I'm guessing I'm fucked, and this was a huge waste of time cleaning this thing up since I'll probably throw it on and it will destroy itself in a few seconds. But before I go cry myself to sleep in a corner I figured I'd post it up and see what you guys think. I never delt with turbos, so maybe they rub a little, or its cause it has no oil or idk. I'd guess it might be from the turbo falling off the work bench, I don't exactly remember it having that much shaft play when I got it, but I could be wrong.

Not sure whats next though, I can't justify putting it back on just for the hell of it to see if it works anyways when there's a good chance of it being bad and spitting metal into bad places, and then having to take everything apart again to put a replacement on. Then again I put a decent amount of work into this, and would like to see some results. Haven't even got to drive the car yet. But idk, I can't exactly scrape together $600 to buy a new one, and I don't think I'm skilled enough to take them apart and mess with them much. I guess I could try getting it balanced, but I'd have to send it off and that's still a good 100 something dollars with shipping. And hell if I got that far I should just get a rebuild kit and do that at the same time, and since its also completely apart, I can just get the exhaust side cleaned by the parts cleaner, which kinda nullifies the hours of wire wheel grinding I did. So basically by the time this thing gets on the road summer is gonna be damn near over. Chingao.

But just for the hell of it I bolted the turbo up to the newly cleaned exhaust manifold and elbow just to see how it fits and looks. Looks nice. I kinda like the dark semi reflective metal color the exhaust housing got on the turbo from the wire wheel via drill, just wish I coulda got all the little rust spots. But its good enough. Found a small crack in the twin entry exhaust gasket, not sure if its big enough to warrant getting a new one from the dealer. Also looks like its cracked on the flip side, but it could be a seam in the metal. But the other gasket is seamless on that side. :shrug:

The replacement studs we got for the elbow side are also slightly shorter, and it looks like they may not cut it, since they leave a mm or 3 of open space on the top of the nut, and do not go all the way through. I got some pics, let me know what you guys think on that too. If not I can probably just get the studs off the old turbo, prob gonna be a pita, but do what you gotta do I guess. Also have pics of the gaskets and their p/ns just incase anyone might need them.

Yeah........... :|

Turbo Being Spun by Hand

Turbo Being Spun by Hand from Exhaust Side

Turbo Shaft Play

The CT26 Single Entry Turbo


Gaskets


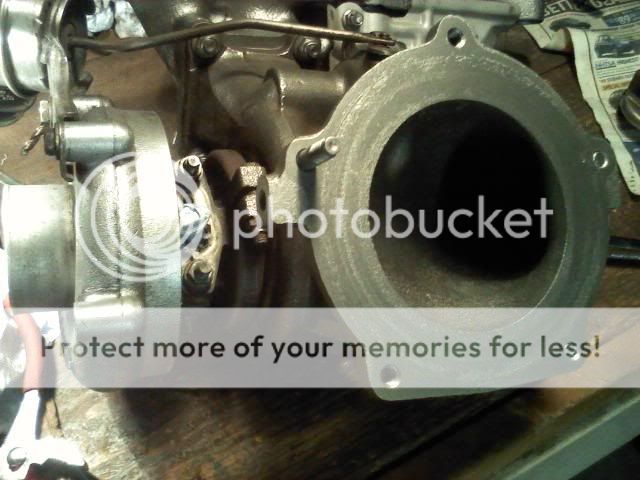

Cleaned up Turbo Pics
