Postby SkagTits165 » Fri Sep 25, 2015 12:53 am

Seeing as how im home sick today, i will finally post my car build. Bought it in 2011 and at that time replaced all wheel bearings, seals, u-joints, drive-axles, brake pads and rotors, fuel pump, ct26, complete exhaust, torsen rear diff, teins, 5zigens,etc. Drove it for the year, parked for winter.
Next year upgraded intercooler setup to big RC intercooler and built new intake and small battery upgrade, aluminum rad, etc, etc, etc..$$$$$$$$$ never seems to end. Had failure in engine at end of summer and it sat until this spring 2015 when i had finally accrued enough funds to build proper engine; GenIII.

Bought engine/tranny from JDMSource in Calgary


Bought complete Oem gasket kit and many more parts. Broke engine down to rotating assembly. replaced every seal and gasket i could possibly get to. Had head go in to machine shop for a complete once over. A competent shop, but they have some newer dude that re-assembled my head and right fucked it up. Good thing i pay attention to minor details and didn't just install.



Do you see it? The valve keepers seemed odd looking on 3 valves, took them all apart to find the idiot must have dropped or lost some keepers, and found something close. He didn't tell anyone and put it all together. Guaranteed it would have spit a half out and piled up my motor. I cant seem to find the pictures showing the differences in keepers, but the lock ring was .5mm different in placement.


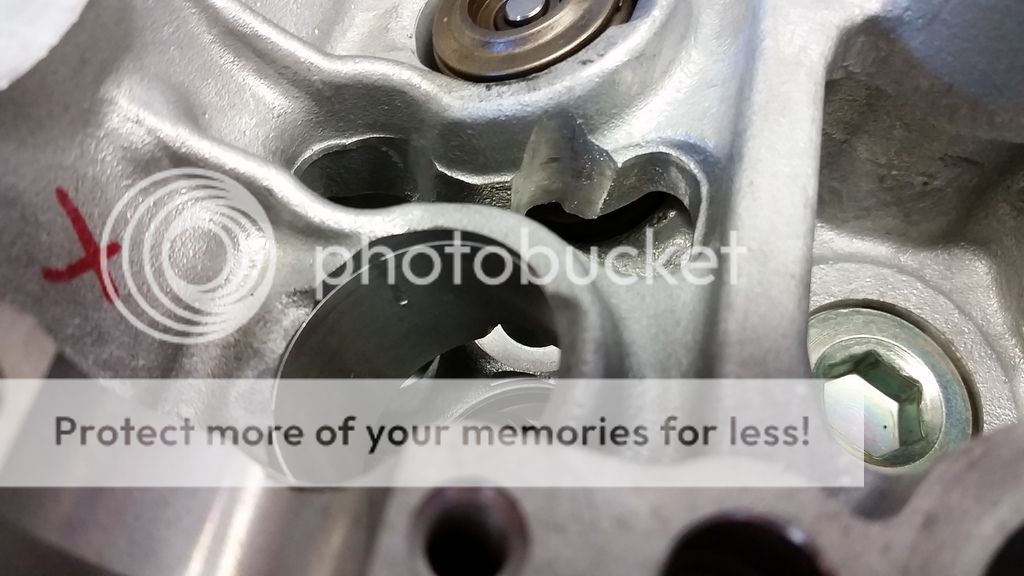

Then i find these marks/damage on 4 valves


Took about 4 hours to polish it to a good state. Sucks they are damaged forever.

Head on with arp studs and Oem HG



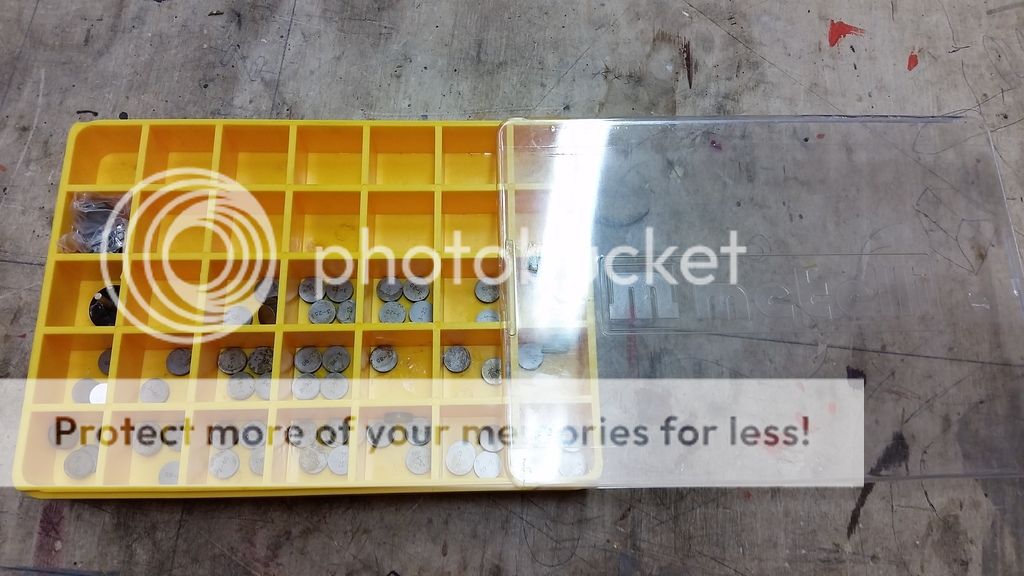

Because of head refresher, the valve adjustment was out on all but 1 valve. Looked everywhere i could think of, and most cost effective way was to order a complete shim kit. If anyone is in need, get a hold of me. The kit has every size shown in the BGB if i remember correctly.



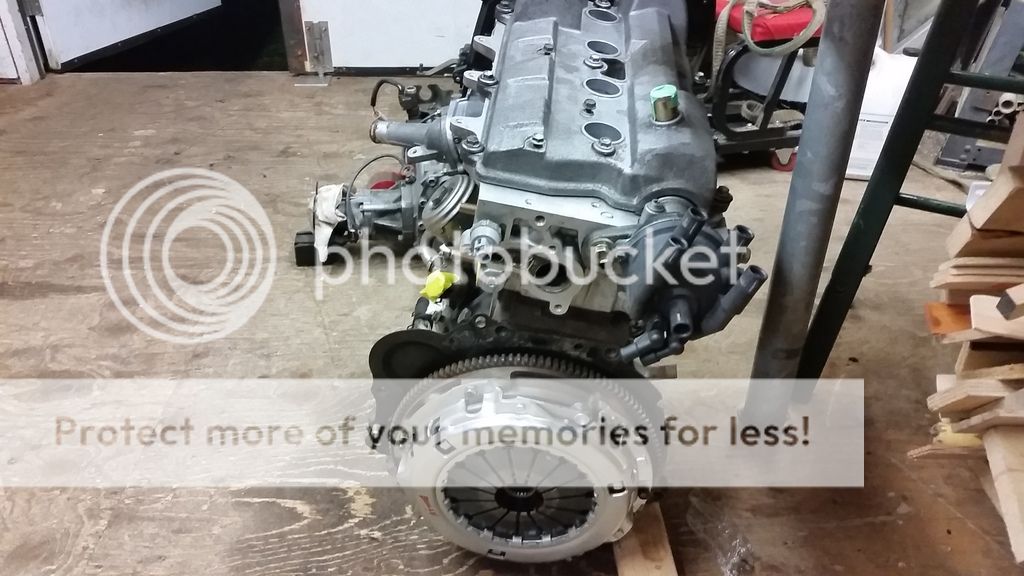

Bully clutch supplied by member Klue. This thing never slips, and is super smooth


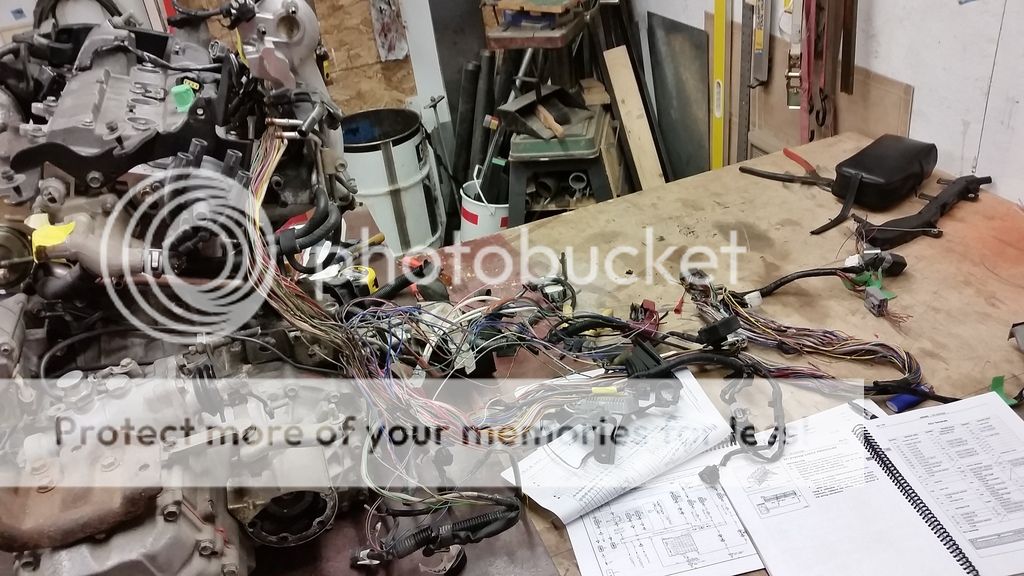

i wish that i took more pictures of the harness, because i dont the a picture of it completed. I wanted a really stock look under the bonnet, so i completely took the stock GenIII harness apart, and extended them through all the stock st165 locations. I used the st165 fuse box. I also ran 4 extra wires just for future consideration.


Stock st165 engine harness for proper measurements and pieces.


I'm an electrician by trade, so the wiring wasn't too tricky. Started up first try with no codes.


Ready for transplant



GenIII fit in very easily with mounts and stub shafts from GenI.


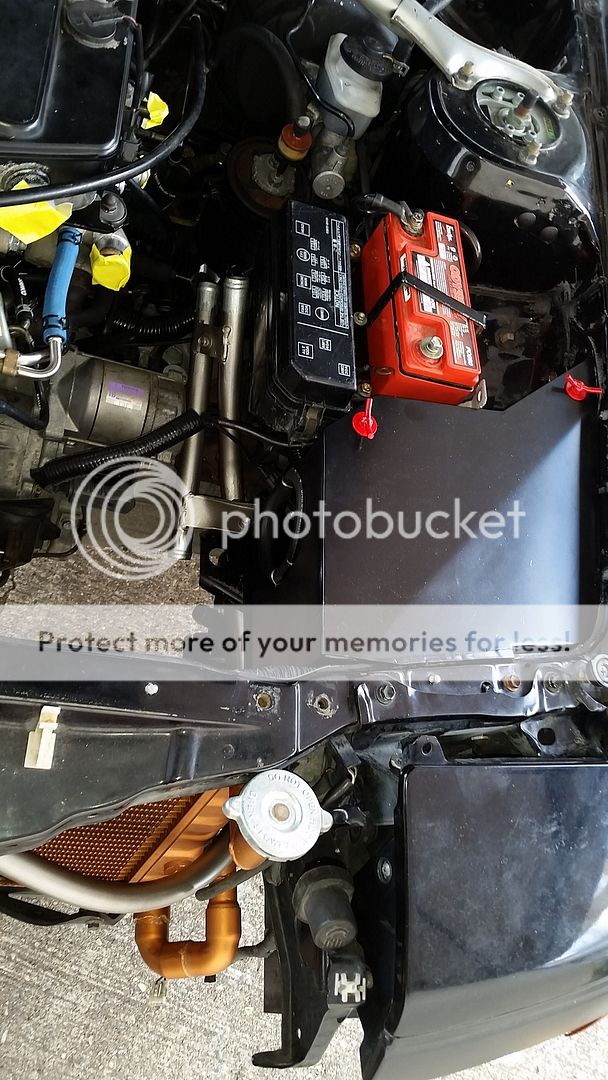

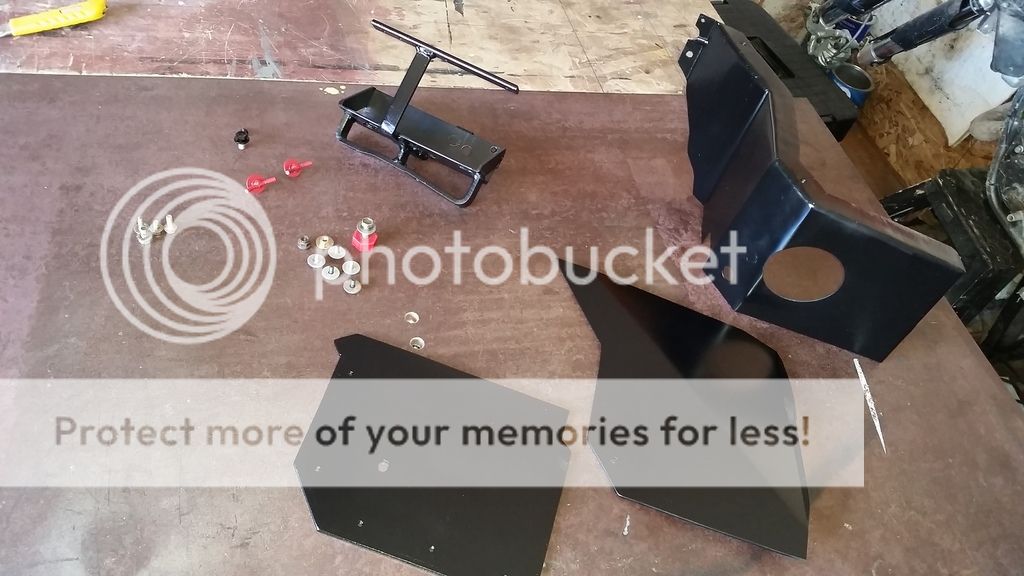

This time i told myself i would do an airbox



The cold air duct piece sandwiches the inner body through to the airbox on the other side with the same bolts, for a truly strong piece.




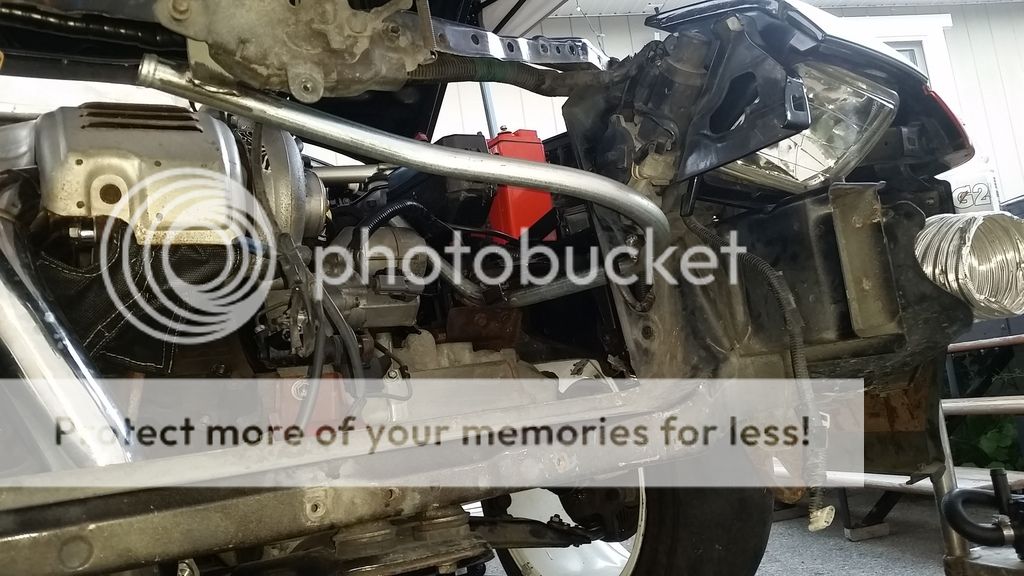

That's a full 4" inlet, to be finished later




had to relocate brackets for secondary fuse box. I rewired these relays inside for intercooler pump, starter relay mod, and fan control.



Bought a shitty parts car for various little bolts, relays, etc for $300



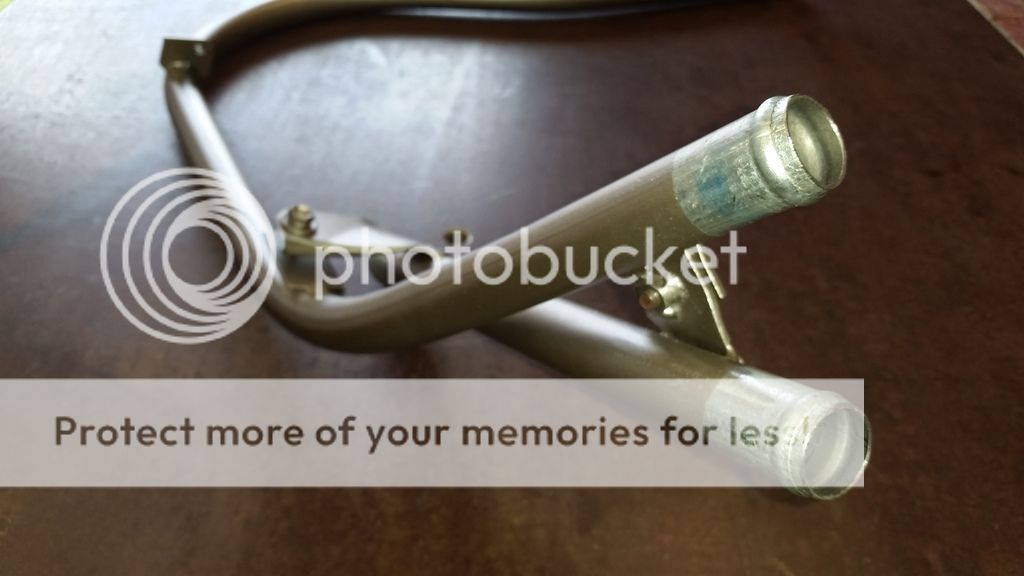

New hard lines for my big intercooler rad setup



I didn't want hoses leaking or coming off, so i made a tool to flare. worked awesome






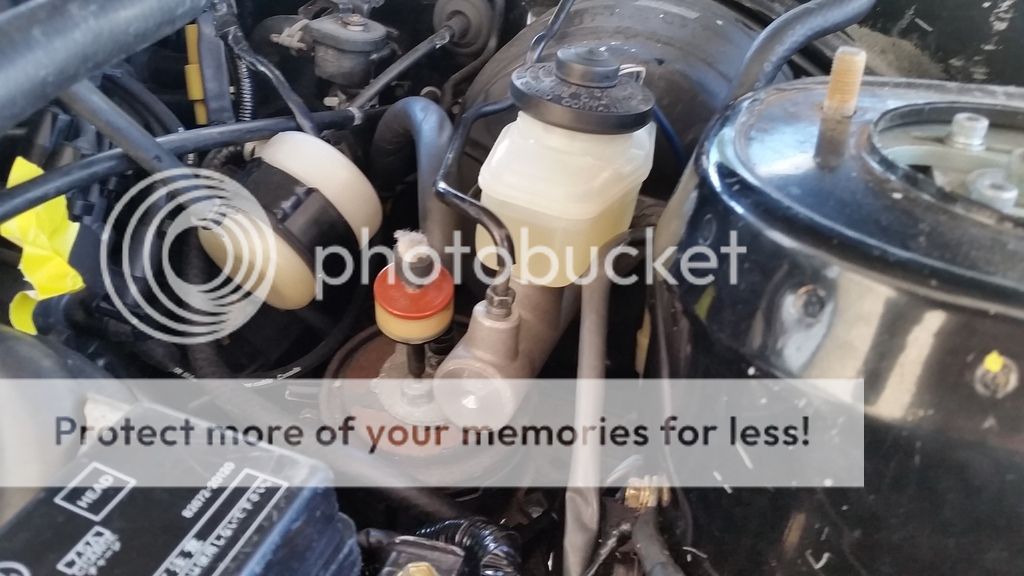

Brand new master cylinder, and tank from red parts car


255lph fuel pump upgrade


Finally put in front and rear whiteline swaybars that i have had sitting for about 3 years



Built shroud for fan



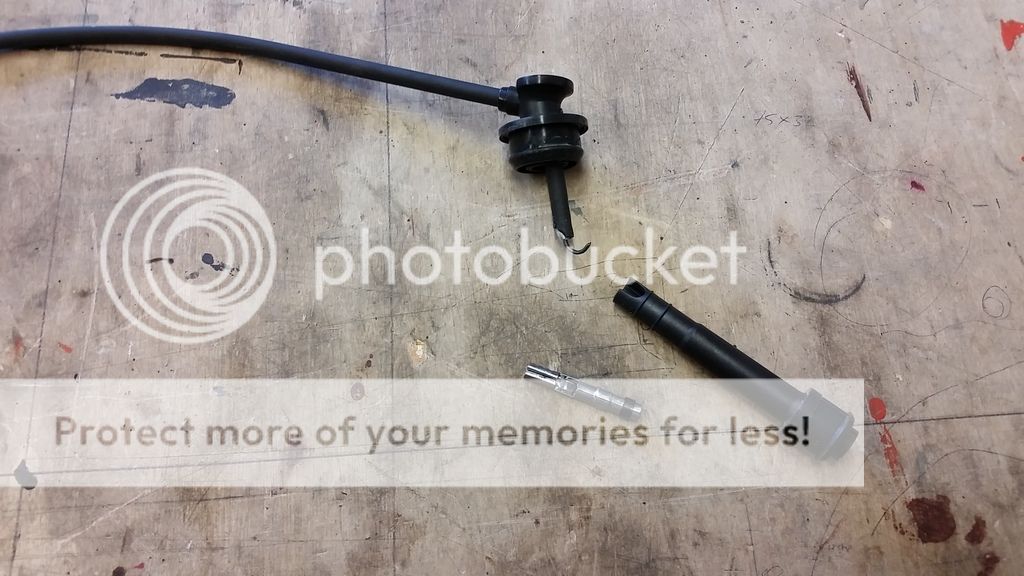

Had wires built by a spark plug wire manufacturer in Vancouver, they are junk. Their v8 wires are awesome, but they cant make 3sgte wires. I had them make a set back in 2012, took them 3 tries to get them right. I thought id give them the benefit of the doubt this time, but never again. They pulled apart first time i took them out. And i do always use the grease on the rubber bits.



I got a full refund, then ordered a set off of RockAuto. $100 delivered

Ready for first start, only open down-pipe.


Started and ran great, just a few minor tweaks

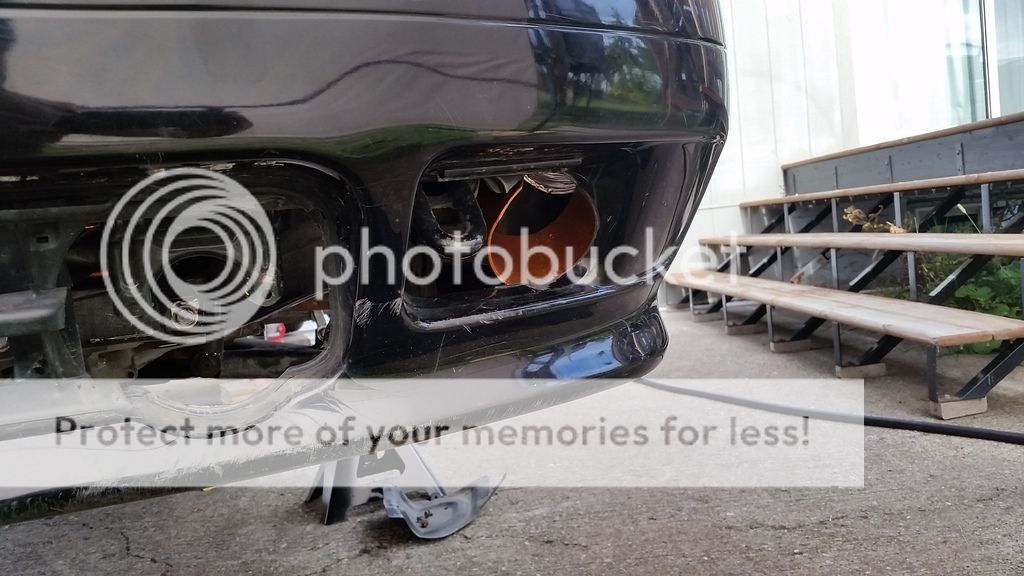

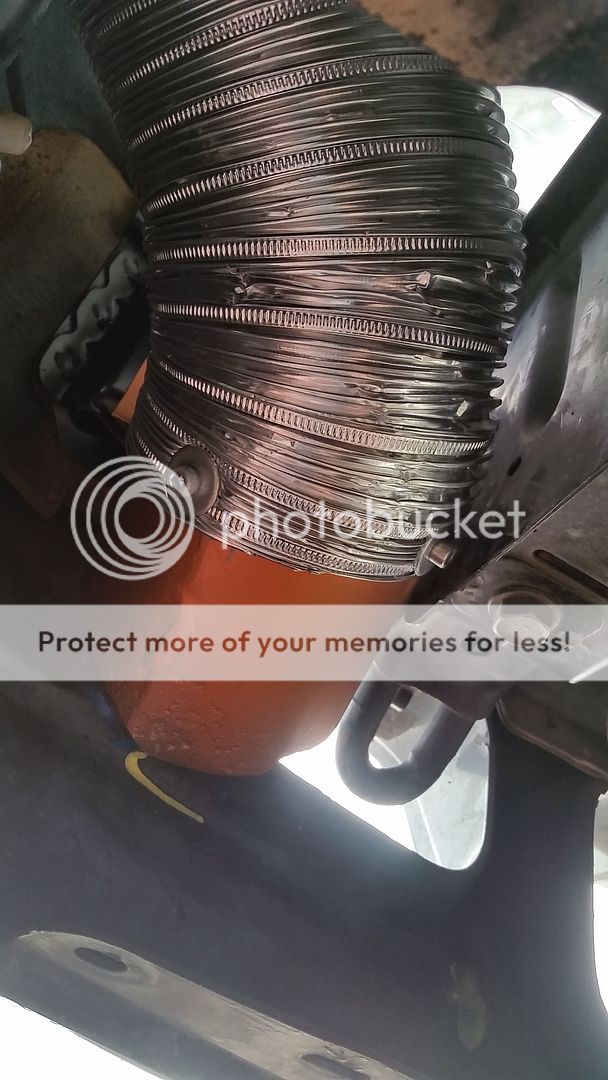

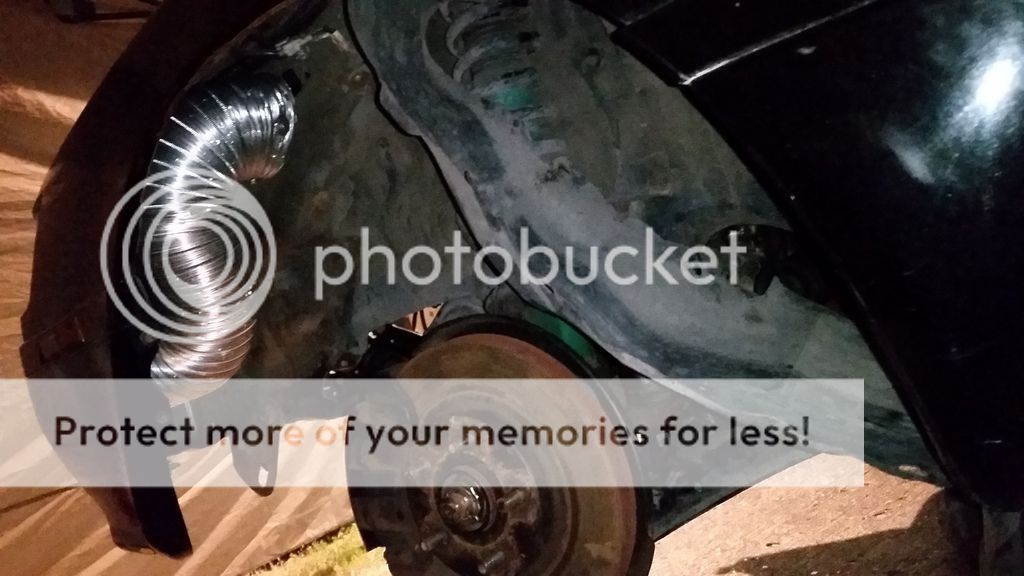

Made the duct inlet for cold air inside bumper




Whilst building harness, i wired componentry to fit exactly where the st165 components were, and cut and welded brackets to fit GenIII , like fuel relay, resistors, coil pack, etc. Painted front whtieline strut brace black as well as stock brace.



Painted fno1`s flat green


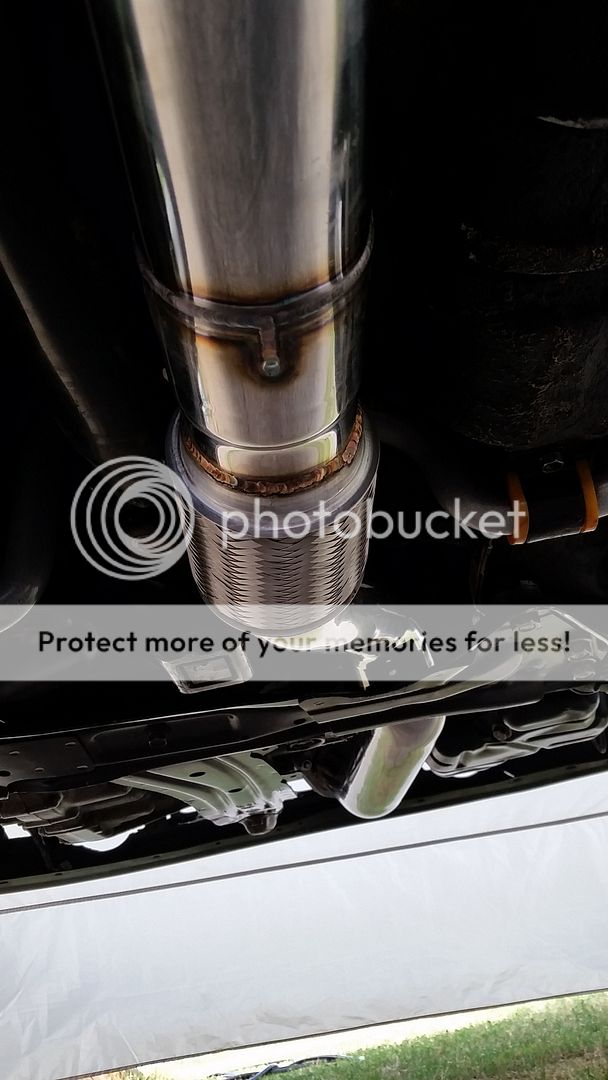

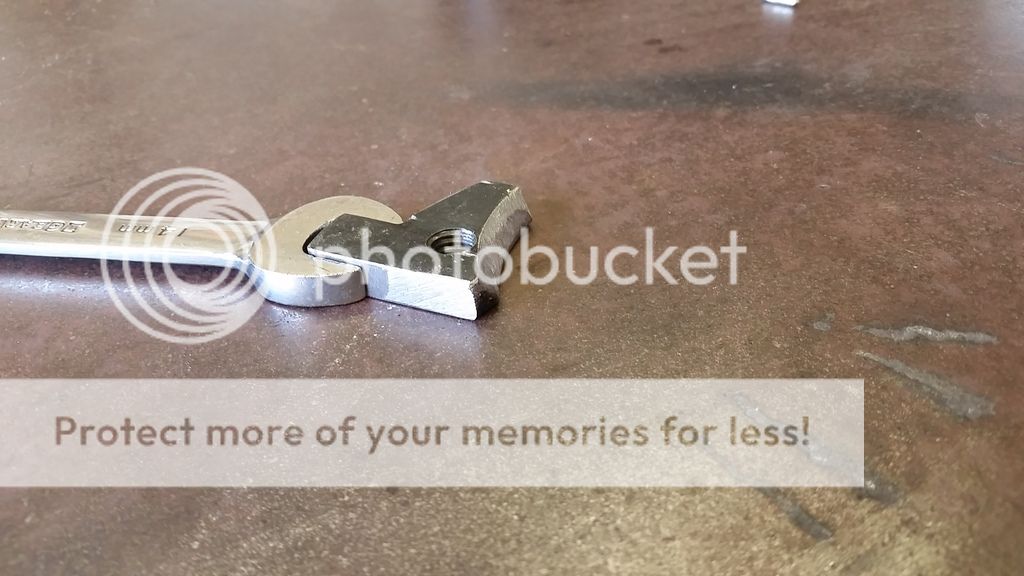

Bought some eBay complete 3" exhaust, had to build this weird nut to make sure that the flanges mated perfectly tight from downpipe to 'B' pipe. Also had turbo faces machined months ago, as well as exhaust manifolds faces, and down-pipe faces.



I refused to cut any Oem braces that would hinder the full 3" exhaust, so i spent roughly 8 hours assembling all components, seeing where i could deform exhaust, dismantle, distort,bend,tweak, reassemble. It worked great. If i cut and re-welded certain sections under the seating area, i could gain 2 inches more ground clearance, but im ok with it.




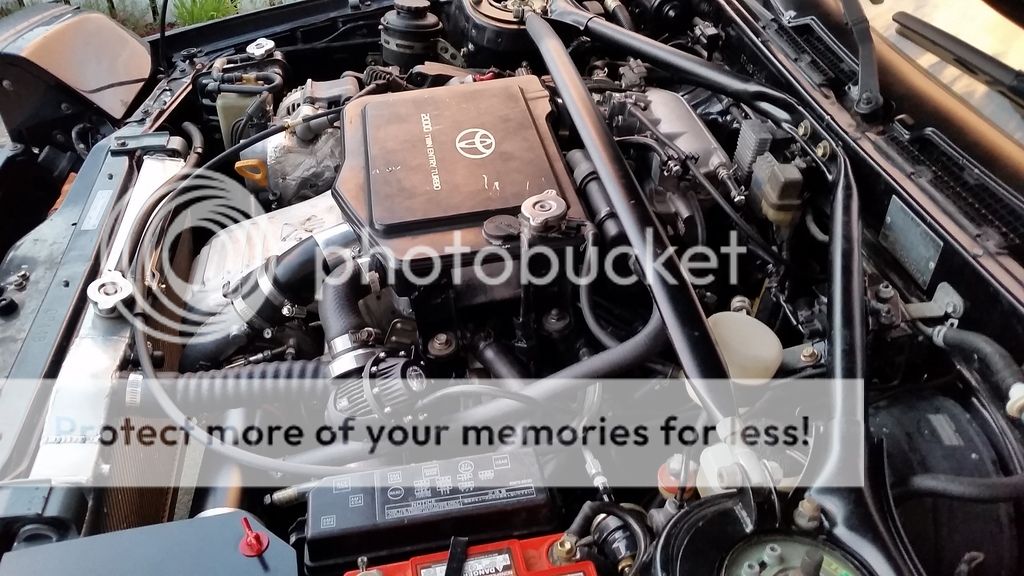

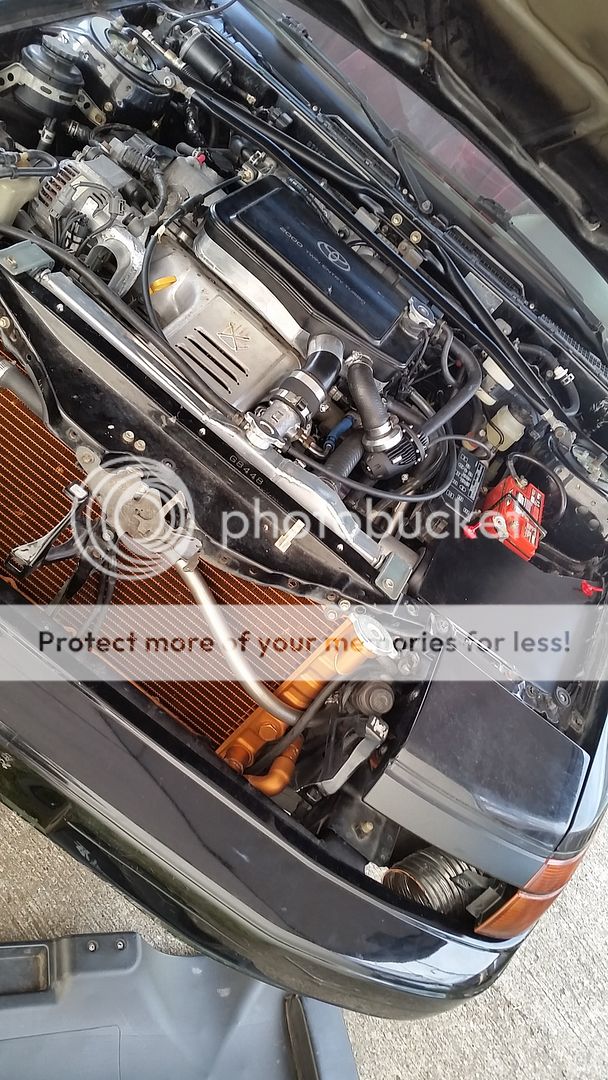

Sittin pretty


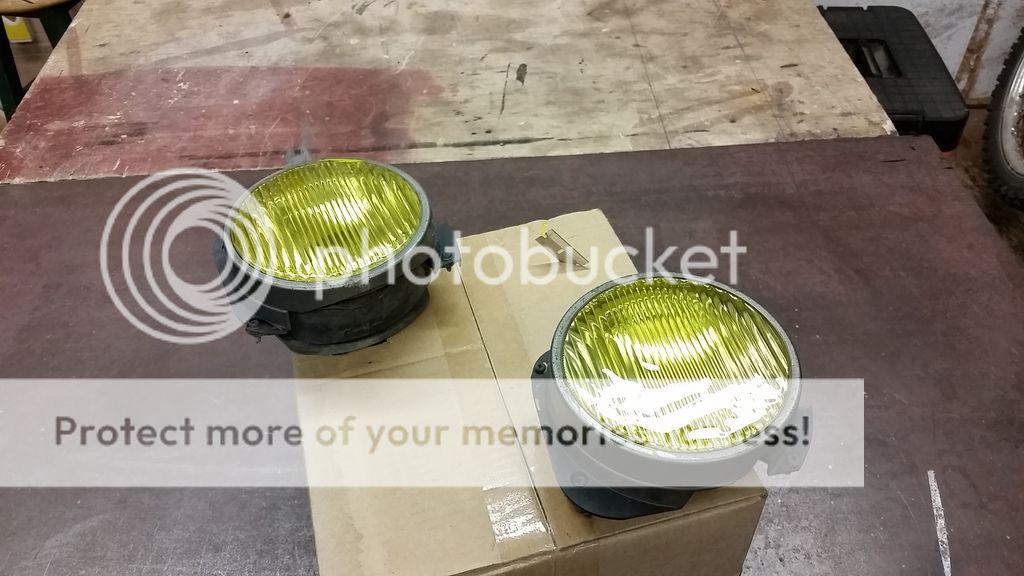

Stained fog lights


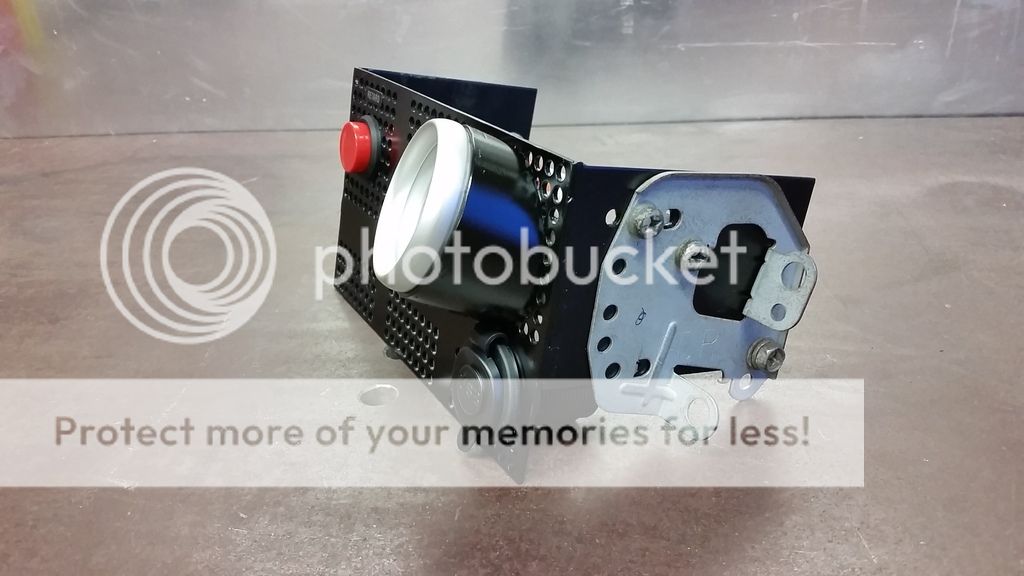

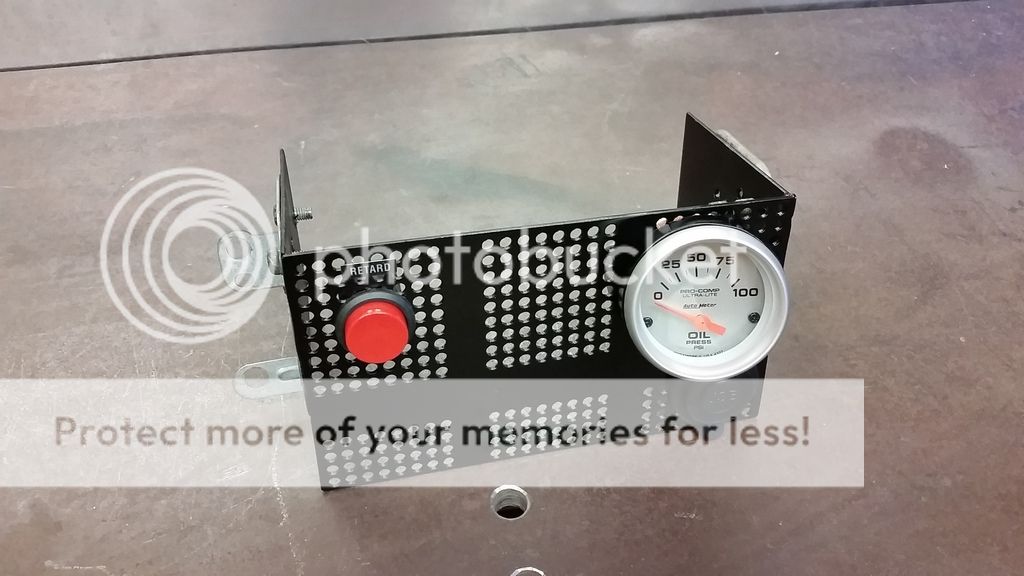

Don't want a head unit for stereo, so built this piece. Top left is the horn button, bottom right USB charging ports. Beside the oil pressure gauge i have to mount my voltmeter ammeter unit whenever it shows up





Also did short shifter upgrade from 94 celica. My measurements gave me a 4inch throw now, instead of stock 5+inches


Turned the adjustable Tein camber adjusters 120 degrees to give me 1degree more castor. Made a world of difference. Turns in and oversteers very nicely now






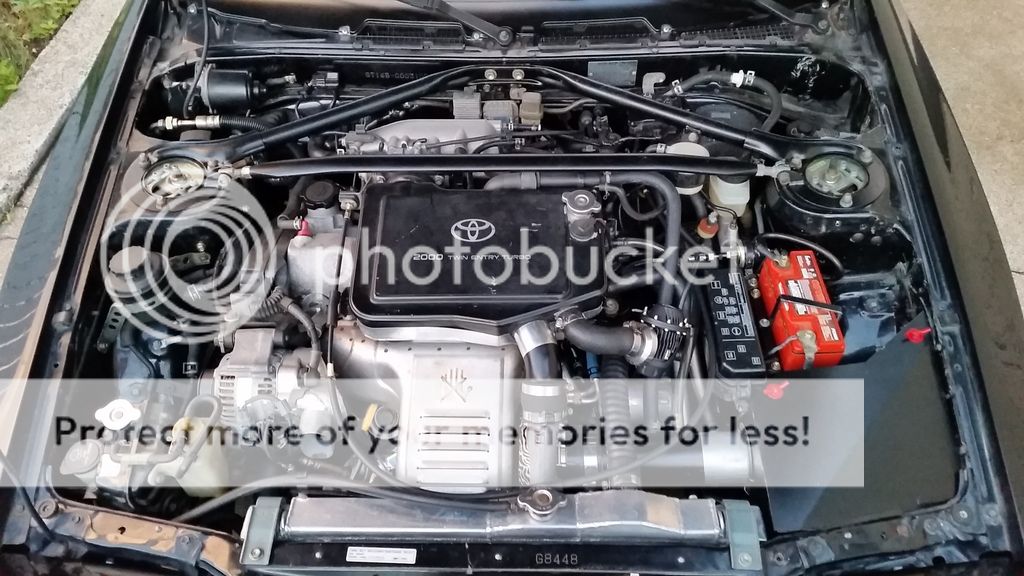

Ready to roll



Lots more that i cant remember. But a very labour intensive few months
I love this motor

BYE BYE STI
Members don't see the above ad. Register now - it's free!
Last edited by SkagTits165 on Fri Sep 25, 2015 8:06 pm, edited 7 times in total.
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST165 ST205 GenIII 3SGTe VERY PIC HEAVY

Postby Awesome-Trac » Fri Sep 25, 2015 2:48 am

Damn you have done everything I've wanted to do to my car and yours is black!
-1988 Celica Alltrac (white) Sold
-1988 Celica Alltrac (black) new project
-1990 Corolla sedan (sky blue) totalled by my brother :(
-1990 Celica GT-S hatchback (sky blue) daily driver

•Daniel
Awesome-Trac
Established Member

Posts: 1291
Joined: Mon Feb 28, 2011 4:31 am
Location: NORCAL "Bay Area"

Re: SkagTits165 ST165 ST205 GenIII 3SGTe VERY PIC HEAVY

Postby zaluss » Fri Sep 25, 2015 3:35 am

Nice to see another ST205 swapped ST165! I'm jelly of those Whiteline sway bars/strut brace.

Anymore info on the wheels? Also did you use the ST165 IC pump or the ST205 one? I wasn't able to get my stock boost gauge to work with the swap so I had to use an aftermarket gauge.

zaluss
Club Member

Posts: 350
Joined: Fri Sep 02, 2011 4:41 pm
Location: Renton, WA

Re: SkagTits165 ST165 ST205 GenIII 3SGTe VERY PIC HEAVY

Postby SkagTits165 » Fri Sep 25, 2015 4:10 am

5zigen 17 x 8 35 offset

I used a Bosch pump. maybe from a mustang? easy to find info online. its a pretty common one.
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST165 ST205 GenIII 3SGTe VERY PIC HEAVY

Postby SkagTits165 » Fri Sep 25, 2015 6:46 am

zaluss wrote:Nice to see another ST205 swapped ST165! I'm jelly of those Whiteline sway bars/strut brace.

Anymore info on the wheels? Also did you use the ST165 IC pump or the ST205 one? I wasn't able to get my stock boost gauge to work with the swap so I had to use an aftermarket gauge.




sweet gauge install
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby SkagTits165 » Fri Sep 25, 2015 3:04 pm

Running stock boost control until my ammeter for my intercooler pump shows up yields roughly 12psi in 1st and 2nd, about 14psi for the rest. Just waiting to install my MBC. With this setup i have pulled away from 2 new STI's off the line, granted that was only in 1st gear. We were in downtown traffic, and i think they were a little sad as neither one wanted another chance. I cant wait to crank up the boost
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby 88st165 » Fri Sep 25, 2015 3:36 pm

Great job on the swap! Did the machine shop take any responsibility for the damage? Crazy how you found the random valve keeper. I would have trusted it was done right after getting it back from the shop. Terrible that people pull that crap, don't provide what they are paid for, and try and get away with it. Keep up the good work!
Red st165 - Garage Queen turned wannabe track rat
White st165 - slapping back together and hoping for the best
Black st165 - gone
2011 FA5 - Family Truckster
User avatar
88st165
Established Member

Posts: 2362
Images: 2
Joined: Sat May 14, 2005 4:09 pm
Location: Chicago, IL

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby SkagTits165 » Fri Sep 25, 2015 5:46 pm

I'm sad to say they didn't really do anything. I've been going to this shop for over 20 years, and know their quality is excellent. When i went in to talk to the owners, they were quite upset over it as its their name getting tarnished. I told them i want them to give whoever did it supreme shit. It is quite sad some peoples work ethic nowadays, its everywhere. That is why i do most jobs myself, and scrutinize/dissect the work done for me.
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby Rick89GTS » Sat Sep 26, 2015 10:13 pm

Awesome build. Nice custom parts you fabbed up. :)
User avatar
Rick89GTS
GTFour God

Posts: 3747
Joined: Sun Aug 08, 2004 6:28 am
Location: Great White North, Canada

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby klue » Sun Sep 27, 2015 2:14 pm

good work keep it going!
facebook.com/xiiimotorsports
#xiiimotorsports ON instagram
User avatar
klue
GTFour God

Posts: 3893
Joined: Thu Nov 04, 2004 9:47 pm
Location: Greater Toronto Area

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby CMS-GT4 » Sun Sep 27, 2015 8:49 pm

I was wondering what those bully clutches run? I just heard of them and am trying to do my research for my next one.
Coldiron
92 st185 (205 swap) | 03 350Z Track (sold) | 13 Pilot | 17 Mazda3
www.noritoy.com | noritoy.deviantart.com | http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=19891
User avatar
CMS-GT4
GTSilver Member

Posts: 10342
Images: 7
Joined: Mon Aug 09, 2004 9:12 pm
Location: St Louis Area (IL)

1992 Toyota Celica

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby SkagTits165 » Mon Sep 28, 2015 1:01 am

CMS-GT4 wrote:I was wondering what those bully clutches run? I just heard of them and am trying to do my research for my next one.


I honestly don't remember the cost. I know I never scoffed at Klue's price, it seemed reasonable. I do know that i have spent a lot of money on parts and goodies getting the motor together and back in. Not all the parts and additions were necessary for swap, but what the heck. It is a good place to waste money.
1 set of spare rubber
User avatar
SkagTits165
Club Member

Posts: 141
Joined: Fri Jul 15, 2011 4:21 am
Location: prince george

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby underscore » Mon Sep 28, 2015 4:31 am

Nice work! Good catch on the head work, I don't trust machine shops at all but they're the only ones you can get to do some work.
★ 1991 GTFour RC ~ "Rebel Scum" ★
It's for sale! http://www.alltrac.net/phpBB2/viewtopic.php?f=64&t=52181
Build thread http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=44216
underscore
GTFour God

Posts: 3809
Images: 0
Joined: Mon Apr 09, 2007 11:29 pm
Location: Kelowna, BC

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby CMS-GT4 » Tue Sep 29, 2015 1:00 am

Ah ok. Screen name a borderlands reference?
Coldiron
92 st185 (205 swap) | 03 350Z Track (sold) | 13 Pilot | 17 Mazda3
www.noritoy.com | noritoy.deviantart.com | http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=19891
User avatar
CMS-GT4
GTSilver Member

Posts: 10342
Images: 7
Joined: Mon Aug 09, 2004 9:12 pm
Location: St Louis Area (IL)

1992 Toyota Celica

Re: SkagTits165 ST205 GenIII 3SGTe into ST165 VERY PIC H

Postby SkagTits165 » Tue Sep 29, 2015 1:42 am

Sorry i don't know what borderlands is, but now I'll have to look it up.
She's definitely not the prettiest set of tits out there, but i love her anyhow
