Postby SuperRunner » Tue Nov 16, 2004 3:54 pm

I also want to see where you put your cat.
Members don't see the above ad. Register now - it's free!
1993 Supra - sold
1993 GS300 900rwhp
1993 Lexus SC400 - supercharged
1991 MR2
1992 Turbo MR2
1990 all-trac
SuperRunner
Club Member

Posts: 95
Joined: Tue Oct 19, 2004 9:50 pm

Postby RIalltrac » Tue Nov 16, 2004 5:03 pm

http://www.alltrac.net/phpBB2/viewtopic.php?t=753

I had posted these a while back in the gallery section. I dont have a good pic of where the pipe travels over the rear axle though.
Chris - 90 ST185
User avatar
RIalltrac
GTFour God

Posts: 3109
Images: 2
Joined: Mon Aug 09, 2004 7:38 pm
Location: North Providence, RI

Postby Gary » Tue Nov 16, 2004 5:06 pm

93 ST185
Gary
GTFour God

Posts: 6430
Joined: Sun Aug 08, 2004 1:03 pm
Location: Carolina

Postby AWDios » Tue Nov 16, 2004 6:53 pm

What's a cat?

:shrug:
90 White 185 with a 97 205 motor
Puget Sound Toyota Owners Club
www.pstoc.org

Formerly known as GT-Four195
AWDios
Established Member

Posts: 1447
Joined: Fri Aug 20, 2004 6:27 pm
Location: Bothell, Wa

Postby silverarrow » Tue Nov 16, 2004 7:30 pm

Catalytic convertor :wink:
89 240sx
07 Versa SL
silverarrow
Club Member

Posts: 637
Joined: Mon Aug 09, 2004 5:07 am
Location: Inland Empire, Southern California

Postby SuperRunner » Tue Nov 16, 2004 9:35 pm

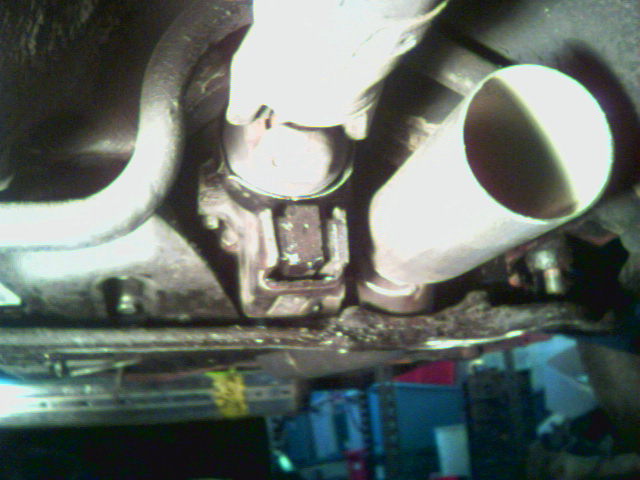

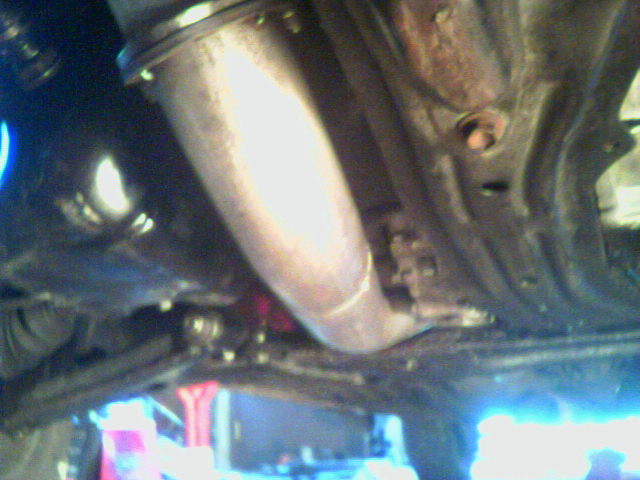

here is what I have so far. Did this on my 1 hour lunch break. Had to use my camra phone and the pictures are somewhat lousy.

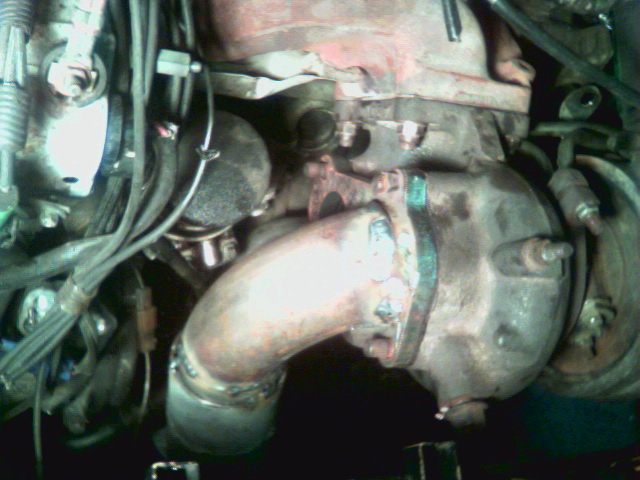

This is an ST165 2 1/2 coming off the turbo flange, and I will have a 1 1/2 coming from the wastgate. When it joins up, the exhaust goes to a 3".

I will get the cat and muffler probably on thursday.

I looks af if my car has 2 mufflers. One before the rear axle, and one after.

If I put the cat where the first muffler is, would that be too far back to get hot enough, or do I need to somehow fit the muffler a litte closer to the engine?



1993 Supra - sold
1993 GS300 900rwhp
1993 Lexus SC400 - supercharged
1991 MR2
1992 Turbo MR2
1990 all-trac
SuperRunner
Club Member

Posts: 95
Joined: Tue Oct 19, 2004 9:50 pm

Postby AWDios » Tue Nov 16, 2004 10:21 pm

silverarrow wrote:Catalytic convertor :wink:


I know, i just don't have one. 8)
90 White 185 with a 97 205 motor
Puget Sound Toyota Owners Club
www.pstoc.org

Formerly known as GT-Four195
AWDios
Established Member

Posts: 1447
Joined: Fri Aug 20, 2004 6:27 pm
Location: Bothell, Wa

Postby alltracman78 » Tue Nov 16, 2004 11:58 pm

Why not put it right where the pipe ends? The closer it is to the turbo the faster it will heat up. Also that's where the Aussie exhaust has it, and I beleive that's where the 2nd cat is on the stock system.
User avatar
alltracman78
GTFour God

Posts: 4675
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma

Postby saved_1992 » Wed Nov 17, 2004 12:22 am

dont forget the flex pipe, the cat should go after the flex pipe this is a pic of an aussie mid pipe no cat, and a 185 down pipe
mike
omaha,ne
1988 work in progresss (205 assem w/tdo6/haltech)sold
1988 a driver (RED) sold
1992 the keeper (RED)
1993 sold to 2of81 (RED)
saved_1992
Established Member

Posts: 1677
Images: 0
Joined: Sun Aug 08, 2004 1:53 pm
Location: omaha,ne

Postby alltracman78 » Wed Nov 17, 2004 12:26 am

saved_1992 wrote:dont forget the flex pipe,


Yes, very good point. I forgot about it :doh:
User avatar
alltracman78
GTFour God

Posts: 4675
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma

Postby SuperRunner » Wed Nov 17, 2004 2:53 pm

my 88 doesn't have a second cat. Just the one right off the turbo.

There was the flex pipe right after the crossmemeber.

Actually, I have run many exhuausts on my off-road trucks(lots of flexing), and never had a problem. Although that was an inline engine.

Wonder if the transverse needs it more.

Anyway, I decided to go 3" from the turbo. Will take a pic at lunch.
1993 Supra - sold
1993 GS300 900rwhp
1993 Lexus SC400 - supercharged
1991 MR2
1992 Turbo MR2
1990 all-trac
SuperRunner
Club Member

Posts: 95
Joined: Tue Oct 19, 2004 9:50 pm

Postby alltracman78 » Wed Nov 17, 2004 2:59 pm

A flex pipe is alot more important in a transaxlially [I think transverse is front to back, but I could be wrong]. The engine has alot more flex. I really wouldn't suggest running a exhaust without it. Unless you're only running it like 2ft.

*actually, I'm pretty sure I was wrong. Our engines should be transverse. :| *
User avatar
alltracman78
GTFour God

Posts: 4675
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma

Postby AWDios » Wed Nov 17, 2004 3:09 pm

I've been running without a flex pipe for about 2 years now, I haven't had any problems, what kinds of problems should I look out for?
90 White 185 with a 97 205 motor
Puget Sound Toyota Owners Club
www.pstoc.org

Formerly known as GT-Four195
AWDios
Established Member

Posts: 1447
Joined: Fri Aug 20, 2004 6:27 pm
Location: Bothell, Wa

Postby spoolin_gt » Wed Nov 17, 2004 3:14 pm

AWDios wrote:I've been running without a flex pipe for about 2 years now, I haven't had any problems, what kinds of problems should I look out for?


your pipe can snap....
spoolin_gt
Club Member

Posts: 99
Joined: Thu Oct 07, 2004 3:04 pm
Location: toronto

Postby alltracman78 » Wed Nov 17, 2004 3:31 pm

AWDios wrote:I've been running without a flex pipe for about 2 years now, I haven't had any problems, what kinds of problems should I look out for?


You notice how when you open rev the engine it trys to flex/spin?
Well, your exhaust is attached to your engine, but it's also attached to the chassis of the car. So when the engine flexes, there's no way for the exhaust to [easily] move with it. That's where the flex pipe comes in. It allows the exhaust to "flex" with the engine [the exhaust hangers don't allow it to move enough, or in the right direction]. If it can't, it creates stress on the piping, and it will eventually break/distort.
In a rwd car the engine doesn't flex the same direction, so it isn't as much of a problem [even tho it's still used].
User avatar
alltracman78
GTFour God

Posts: 4675
Joined: Mon Aug 09, 2004 9:04 am
Location: Ma
