3SGE intake manifold on a 3SGTE??

Q&A regarding engines, turbos, and intercoolers and power upgrades

Re: 3SGE intake manifold on a 3SGTE??

Postby TRDcelica90 » Mon Apr 05, 2010 2:27 am

got mine for $50 delivered and with EGR!! woot...

What is the sensor on the left side of the mani??

so in a nutshell to get this on my car i have to

1.Block off CSI
2.block off/adapt idle
3. ??
4.??
5??
Members don't see the above ad. Register now - it's free!
1990 Toyota Celica GT-FOUR RC Now with the power of a Garrett GT30!!

1987 Toyota Celica GT-Four ST165 Rally car in the making..
User avatar
TRDcelica90
Club Member

Posts: 326
Joined: Tue Mar 03, 2009 9:16 pm
Location: Melbourne, Australia

Re: 3SGE intake manifold on a 3SGTE??

Postby trd-at » Mon Apr 05, 2010 2:35 am

you wanna take some pics of your setup? i am curious to see others and the way they did them
trd-at
Club Member

Posts: 362
Joined: Sun Nov 07, 2004 9:49 pm
Location: DENVER, CO

Re: 3SGE intake manifold on a 3SGTE??

Postby polarmoment » Mon Apr 05, 2010 2:56 am

soarer.jzz30 wrote:I can't find that manifold anywhere it seems, I call everyone I can find on google and put in parts request and they end up being like $140. No way I'm paying that much, might as well get one custom made and spend a little more. But it looks great man, I wish toyota would've thought of that in the first place. Looks factory, always a good thing. Keep up the good work. :notworthy:


they show up in the u-pull about once every 6 months too. i started pulling the mani on one a while back, but had to quit for the day and went back the next week and it was gone! i was pissed- i mean who in MN would have wanted that specific manifold? i know all the MR2 guys and none of them were looking..

later, i went to help bccentaur with the honda ECU swap and found out it was him who yanked it. eventually another one showed up and he pulled it for me and i just traded a couple parts for it. i think the yard here charges like $12 or $16 for an intake manifold.


i'll try to get some pics once i'm done with it.
polarmoment
Club Member

Posts: 60
Joined: Fri Mar 04, 2005 6:05 am

Re: 3SGE intake manifold on a 3SGTE??

Postby trd-at » Mon Apr 05, 2010 2:52 pm

that sensor is an IAT sensor. It is for my engine management. If you are running factory engine management then you will not have this or have to worry about it.
trd-at
Club Member

Posts: 362
Joined: Sun Nov 07, 2004 9:49 pm
Location: DENVER, CO

Re: 3SGE intake manifold on a 3SGTE??

Postby GT4times2 » Mon Apr 12, 2010 2:01 am

Here are pics of my 3SGE side feed intake manifold. The throttle body is from a 3rd gen 3S motor, IIRC. I have it in my garage. I was going that route, but going instead with a custom side feed with a bigger plenum for one of the Alltracs. Here are the pics for some to look at, uninstalled. I purchased it from my friend who had it on his MR2 Turbo. Worked well, for him until he went with a custom set up, bigger plenum set up as well. I have yet to use it.



Frantz
12 Toyota Sienna LE (The Daily Pacifier)
05 Toyota Avalon XLS
90 ST185 Gen4
88 ST165 Gen3-The works
89 ST165 Gen4-on the way
+ Many other projects, under covers....
GT4times2
Established Member

Posts: 2135
Joined: Mon Aug 23, 2004 3:21 pm
Location: Florida

Re: 3SGE intake manifold on a 3SGTE??

Postby polarmoment » Mon Apr 19, 2010 6:21 pm

here's mine so far:

engine bay is a mess still.
i don't think you can see the IAT sensor hole, but it's under the blockoff plate for the CSI. i'm using this IAT sensor from a 99 landrover discovery:
infortunately, they're ridiculously expensive if you don't find one in the u-pull.


throttle cable bracket fresh out of the dye bath after anodizing:

i had a hell of a time finding a 5SFE throttle cable, so i eventually gave up and decided to use a cruise cable from a corolla or whatever it was that i found in the yard. that necessitated a custom bracket though.

i also used a sanding drum on a hand drill to portmatch the runners to the TVIS plate. my TVIS actuator was also dead, so i grabbed the ACIS actuator off a camry V6 and cut/JBwelded the appropriate bits from the TVIS bracket onto it so it would work.
polarmoment
Club Member

Posts: 60
Joined: Fri Mar 04, 2005 6:05 am

Re: 3SGE intake manifold on a 3SGTE??

Postby built2run » Mon Apr 19, 2010 8:47 pm

man i really have to start making those intake mani's i got planned and hopefully sell them at an affordable price, within reason
"straight lines r 4 fast cars, turns r 4 fast drivers" Colin McRae.
ST165, black: parted and gone
ST165, white: rear ended by ass hat
ST165, white: sold to friend
ST185, black: current project, "The Kraken"
User avatar
built2run
Established Member

Posts: 1534
Joined: Wed Feb 02, 2005 11:17 pm
Location: Hollister, California

Re: 3SGE intake manifold on a 3SGTE??

Postby WarTowels » Tue Apr 20, 2010 12:14 am

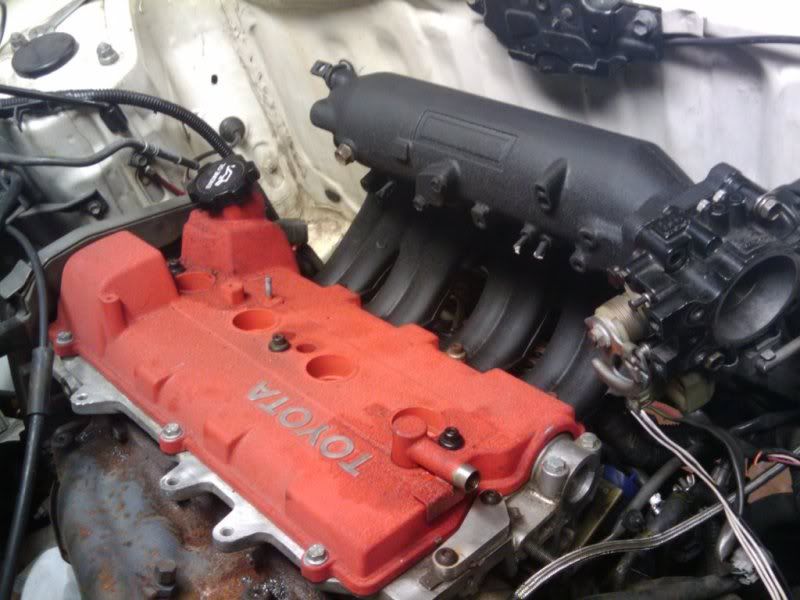

Here's mine fresh from the PC.

Sorry for the low light.




Semi gloss black

-Towels
2003 S2000
1985 300TD
User avatar
WarTowels
Gold GTfour God

Posts: 6443
Joined: Tue Aug 17, 2004 4:30 am
Location: I live in a garage.

Re: 3SGE intake manifold on a 3SGTE??

Postby trd-at » Wed Apr 21, 2010 1:38 am

looks great guys! love both PC jobs. I used a throttle cable from a 1996 celica gt with a 2.2. This cable is very short and fits great, just had to make my own throttle cable bracket. I'll post some pics.
trd-at
Club Member

Posts: 362
Joined: Sun Nov 07, 2004 9:49 pm
Location: DENVER, CO

Re: 3SGE intake manifold on a 3SGTE??

Postby trd-at » Thu Apr 22, 2010 12:26 am

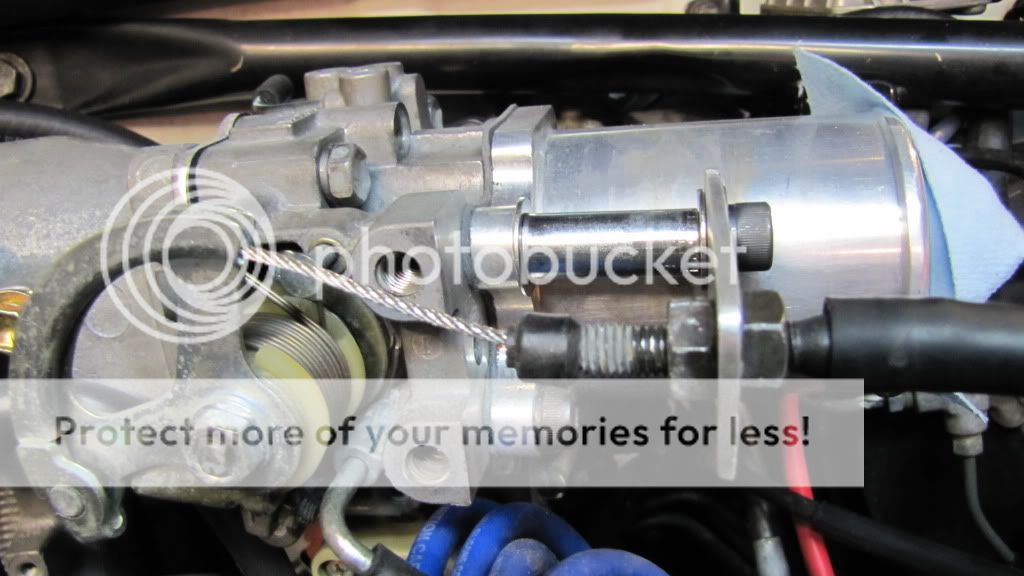

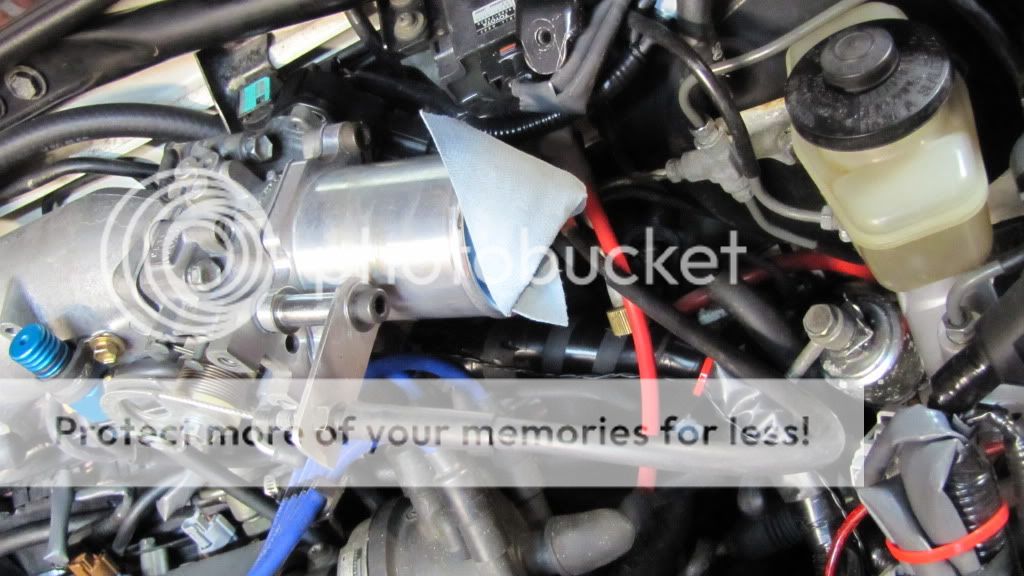

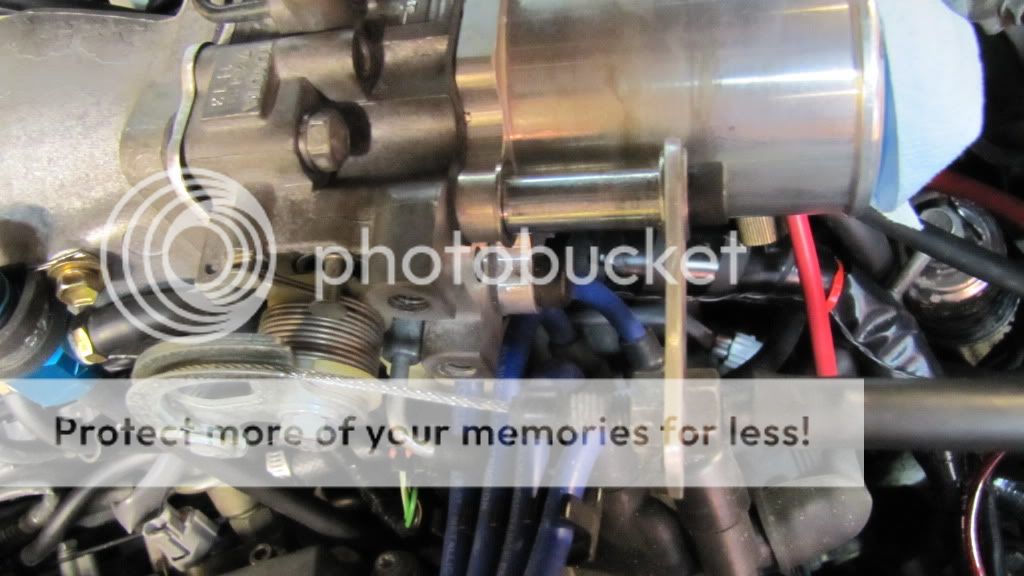

Here is my throttle linkage and cable setup:

trd-at
Club Member

Posts: 362
Joined: Sun Nov 07, 2004 9:49 pm
Location: DENVER, CO

Re: 3SGE intake manifold on a 3SGTE??

Postby toayoztan » Thu Apr 22, 2010 6:47 am

Lookin good guys!

Man I need to pick up one of these manifolds. Local yards didn't have any :doh:

Bryan
2017 Pilot Elite
2014 Juke NISMO RS
1994 Supra TT 6spd
1993 Alltrac - http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=37466
1977 Celica GT Liftback
2015 Grom
1977 GL1000
User avatar
toayoztan
GTFour God

Posts: 6734
Images: 1
Joined: Wed Aug 11, 2004 5:51 am
Location: Oklahoma

1993 Toyota Celica

Re: 3SGE intake manifold on a 3SGTE??

Postby polarmoment » Mon Apr 26, 2010 8:54 pm

test fitted the induction system:


everything fits much better than it used to :D i love being able to pull the VC without having to touch the throttle body/charge pipes...
polarmoment
Club Member

Posts: 60
Joined: Fri Mar 04, 2005 6:05 am

Re: 3SGE intake manifold on a 3SGTE??

Postby polarmoment » Thu May 06, 2010 12:22 am

done:


i went with the 3SGE top-feed fuel rail as well:

simple mounting brackets:
i'm using WRX injectors, which are shorter than standard denso units. measurement from bottom of rail to bottom of bracket is 33mm, and the mounting hole is 15mm forward from the back of the rail, 7/16" diameter.

i used some 2"x2"x1/8" thick 6061-T6 angle.

to make the injector cups, just cut the ends off the stock rail and seat the injectors into them with an o-ring.
polarmoment
Club Member

Posts: 60
Joined: Fri Mar 04, 2005 6:05 am

Re: 3SGE intake manifold on a 3SGTE??

Postby DudeMan » Thu Jul 01, 2010 12:32 pm

So I managed to find one of these manifolds yesterday for cheap. Unfortunately its completely bare and didn't include any sensors or the throttle body.

Will this be a problem for me?

Can I just swap everything from the stock manifold?
-Chase

1990 4Runner SR5
1990 Celica GT-Four
User avatar
DudeMan
Club Member

Posts: 716
Joined: Mon Feb 02, 2009 5:41 pm
Location: Edmonton, AB Canada

Re: 3SGE intake manifold on a 3SGTE??

Postby WarTowels » Mon Jul 05, 2010 3:02 am

blah
Last edited by WarTowels on Mon Jul 05, 2010 11:29 pm, edited 1 time in total.
