REFRIGERATED Intercooler-needs input

Postby Overtriped » Wed Feb 06, 2013 3:40 pm

Okay, here it goes. I've seen a couple ideas floating
Around- can you use your A/C compressor to cool you charge?
From what I've seen people have the wrong way of going
About it and conclude that it is impossible. I believe otherwise being a refrigeration tech, working on industrial equipment every day. My idea is a simple one using today's existing
Technology. A few questions I have is what are our compressors rated (in HP?) could weuse a larger compressor? How much HP is being used to turn the compressor? Can we overcome the power lost with the colder inlet temp and extra weight of the copper pipes, fans, chiller, and Condenser?

Secondly you need an ATW Intercooler to make this work. ( I also have an ATA idea as well.)

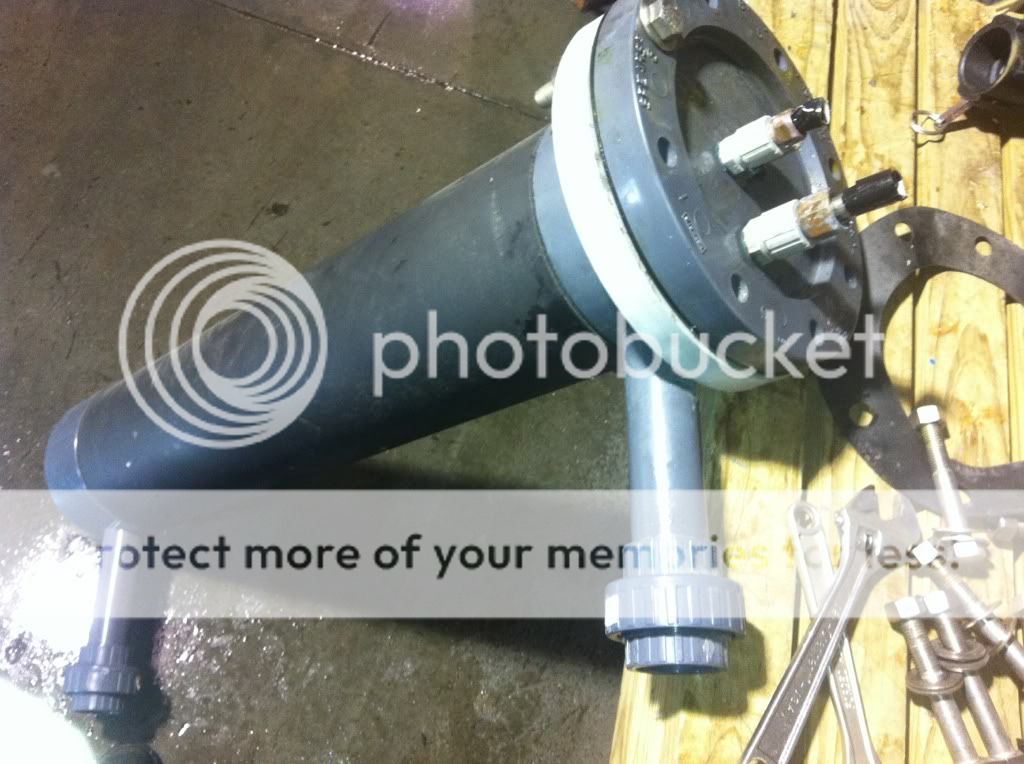

This is a chiller barrel, how it works is there is a thermal expansion valve prior to the inlet ( small titanium pipe sticking out) water/glycol- or in our case engine coolant goes into one side of the PVC barrel, heat is evaporated and the cooled liquid comes out the other side and then travels to the ATW IC. This would help eliminate heat soak. By moving the heat from the engine coolant to the refrigerant. You can't get rid of energy - but you can move it around.

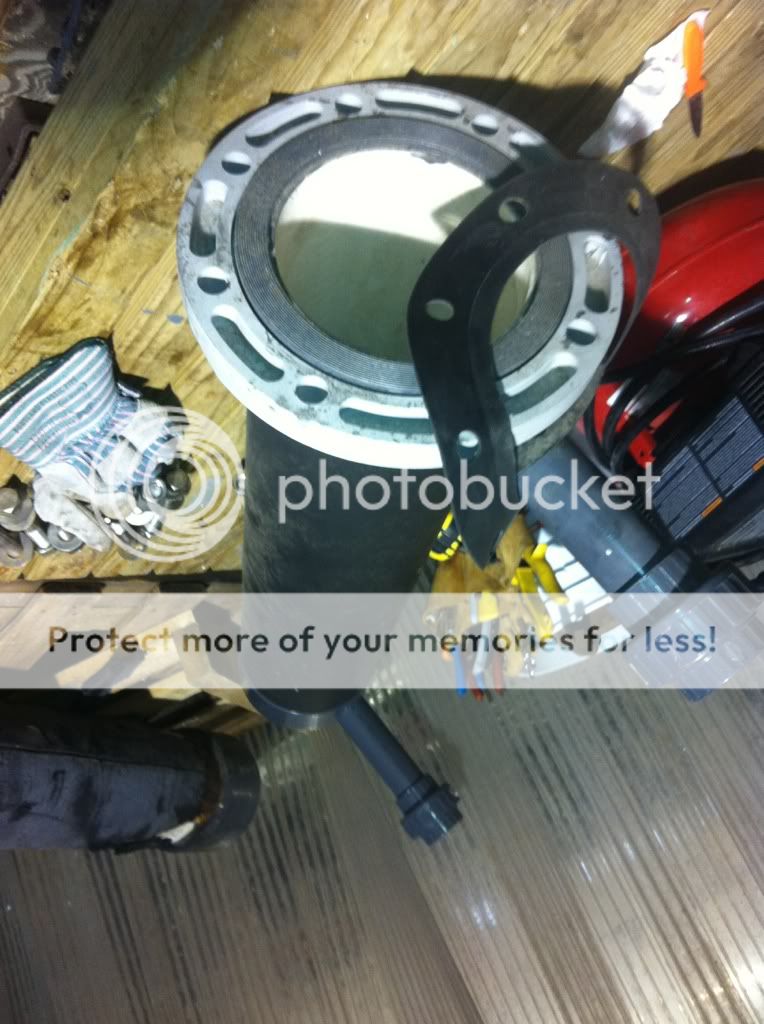

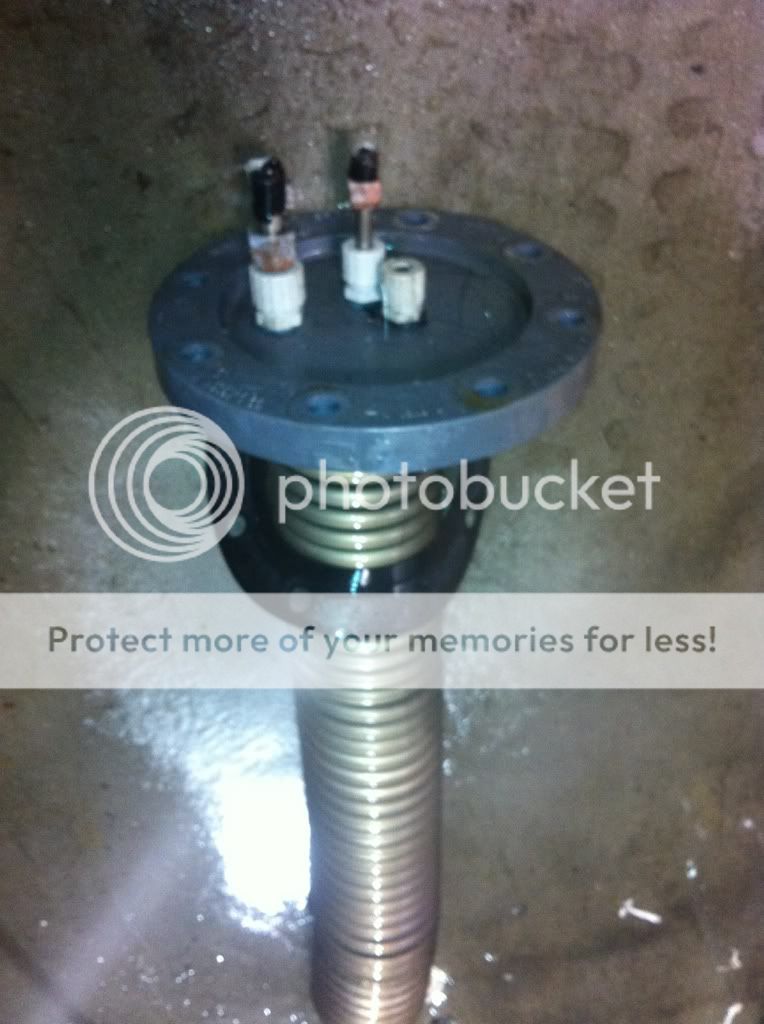

ImageImageImage what you see here is I took the barrel apart, there is an inlet(liquid line) and an outlet (suction line) for the refrigerant there is also a place to put your thermostat.
The other part has an inlet/outlet for your coolant. That's a brief summary. Questions comments are welcome.
Members don't see the above ad. Register now - it's free!
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Thu Feb 07, 2013 10:35 pm

I'm guessing that this is to vague? I'll get on a PC and draw up the design so it will be Easyer to visualize. I do believe with enough info on the components I could make this work.
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby 88gt4DE » Thu Feb 07, 2013 10:55 pm

Got my attention .... :)
Rob
1988 ST165 - 77K - Project ---> http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=31483&start=240
2000 Toyota Tundra SR5 - 162K - DD - Thanks 97JZA80
2007 Toyota Rav4 - 110K - My girls DD
1999 Honda Civic - 116K - Highway Runner
User avatar
88gt4DE
Established Member

Posts: 2665
Joined: Tue Nov 25, 2008 2:44 am
Location: New Castle , DE

Re: REFRIGERATED Intercooler-needs input

Postby underscore » Thu Feb 07, 2013 11:11 pm

I think I read about something similar years ago but I believe the power lost due to the load of the AC pump is greater than the power gained by reduced air temps.
★ 1991 GTFour RC ~ "Rebel Scum" ★
It's for sale! http://www.alltrac.net/phpBB2/viewtopic.php?f=64&t=52181
Build thread http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=44216
underscore
GTFour God

Posts: 3792
Images: 0
Joined: Mon Apr 09, 2007 11:29 pm
Location: Kelowna, BC

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Fri Feb 08, 2013 1:10 am

I'd like to know how much power the compressor uses ( usually rated in HP)
I'm Sure someone has a dyno sheet AC vs no AC.
Some evaporators are -40deg F . Imagine... Your IC would be a block of ice..
Takes a lot of HP, and refrigerant to make an evap that cold though.

I'll post up the ATA idea soon, it's less complex and lighter weight.
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby Corey » Fri Feb 08, 2013 1:47 am

Having driven my car in -25C with -35C windchill recently I can confirm a noticable improvement in power. The intercooler doesn't even have a chance to get mildly warm to the touch lol.
User avatar
Corey
GTFour God

Posts: 4118
Images: 49
Joined: Sun Feb 11, 2007 12:12 am

1989 Toyota Celica

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Fri Feb 08, 2013 2:02 am

Yeah, I'm In Maine and the temp varies from -25 to 105. Rigs run
Stronger on cold days, as long as you let it warm up.
The refrigerated system has the advantage or being thermostatically controlled so its neither too hot or too cold.
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby klue » Fri Feb 08, 2013 2:14 am

I experimented with a refrigerated intercooler, main issue was condensation build up and poor fuel atomization. In the end cooler charge is better to an extent, but not this far.
facebook.com/xiiimotorsports
#xiiimotorsports ON instagram
User avatar
klue
GTFour God

Posts: 3893
Joined: Thu Nov 04, 2004 9:47 pm
Location: Greater Toronto Area

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Fri Feb 08, 2013 3:31 am

All the units I work with either have a condensate drain/pan or are insulated.
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby l0ch0w » Fri Feb 08, 2013 6:39 am

Killer Chiller has made units like this for some time.

http://www.killerchiller.com/

The thing here is that eventually you are limited by your intercooler's thermal efficiency. I dont care how cold the water gets, eventually you reach a point of diminishing returns. Hell if you ran 30* coolant through your intercooler, your charge temps will only lower respectively to how well your intercooler can transfer heat. Low RPMs will see very low AITs (which tend to harm fuel mileage) and at high airflow values the charge temperature will show drops, but not ones that are significant enough to merit complicated and heavy systems versus ones that dont employ refrigerated systems.

On top of that, most comparison gains shown from refrigerated A2W coolant have been done on vehicles already heatsoaked on the dyno with questionable airflow across them. Mustang guys have been notorious for this, the cobra came with a factory A2W system that if left to idle for long periods of time would easily heatsoak. A refrigeration system would solve this issue, however an upgrade to the heat exchanger, the pump, and maybe not letting it sit on a dyno running for so long would have probably also remedied this problem...

My recommendation would be to consider designing a proper A2W system with a decent heat exchanger, a powerful pump (I recommend a Johnson CM90), some temperature controlled cooling fans, and pretty much whatever Intercooler you can fit under your hood...

No need to go overboard on A2W intercooling, as long as it is adequate for your engines demands, I wouldn't over-think it too much they are highly efficient and capable in their own right. A lot of people already argue that An A2W system is already pushing the boundary between weight/complexity/gains in its own right, why add to that?

Consider the following factors:

-Fuel type and delivery, If you only have access or plan on using 91 octane or lower, then intercooing becomes more important. Great intercooling is not a substitute for inadequate fuel delivery if you want a reliable vehicle. Don't rely on lower charge temperatures when in reality you should be delivering more fuel...

-This will definitely not be worth it for a factory ECU or stock CT26 vehicle... The fueling system and turbo already flop out before the knock threshold is reached with the factory intercooler. Intercooling already is only really useful if you are breaching the knock threshold. I would say unless you are over 500whp dont bother trying to use refrigerated A2W just go with a well designed A2W or a front mount... Intercooling is NOT a power adder, its a power reinforcer, meaning it allows your motor to develop more power by decreasing the knock threshold and slightly increasing air density, it does not physically increase the power... only the fueling system can do that...

-Weight and complexity, If you plan on running a zillion systems to accomplish one task, consider whether or not the added weight and complexity will make up for itself by its gains.

-If you plan on making this an educational exercise, be prepared to be able to datalog. Butt-dyno doesn't count here... That means running control experiments with datalogged AIT values, and HP/Torque data.


That said, If I havent discouraged you at this point, I would really be interested in seeing the results!
Andrew

1991 Red Alltrac
Frankenstein engine, lots of mods :P
User avatar
l0ch0w
Established Member

Posts: 1137
Joined: Thu May 31, 2007 7:38 pm
Location: Lansing KS

1991 Toyota Celica

Re: REFRIGERATED Intercooler-needs input

Postby klue » Fri Feb 08, 2013 12:28 pm

Overtriped wrote:All the units I work with either have a condensate drain/pan or are insulated.


May be true, the system I developed was rather unorthodox

Consider if the materials from your work are able to handle engine temperatures, vibration, chemicals etc. By all means its fun to tinker
but from a performance aspect traditional intercooling methods are great once the system is designed well.
facebook.com/xiiimotorsports
#xiiimotorsports ON instagram
User avatar
klue
GTFour God

Posts: 3893
Joined: Thu Nov 04, 2004 9:47 pm
Location: Greater Toronto Area

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Fri Feb 08, 2013 11:07 pm

The idea I had in my head is that you could Run a leaner ATF ratio and not have to worry about melting and pre detonation( unless you sprang a leak or toasted the compressor- which there should be safety switches in place)
this would replace meth/water injection- you could use the condensate to further Cool your inlet. It does add a couple extra parts. Relatively not much more complex than your AC though. Defiantly valid points being brought up here. I did see one other ATA prototype that did not work very well, I really didn't like there design though.
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby klue » Fri Feb 08, 2013 11:10 pm

On the contrary, you would need to run a RICHER air mixture due to the cooler charge containing more oxygen. Secondly, the cooler the charge the poorer the fuel atomization requiring an even more rich mixture
facebook.com/xiiimotorsports
#xiiimotorsports ON instagram
User avatar
klue
GTFour God

Posts: 3893
Joined: Thu Nov 04, 2004 9:47 pm
Location: Greater Toronto Area

Re: REFRIGERATED Intercooler-needs input

Postby Overtriped » Fri Feb 08, 2013 11:43 pm

Well the killer chiller defiantly works.. Very good reviews!!
I didn't know about the atomization. it's a lazy blizzard day and Im not on my A game.
Doesn't a leaner mixture burn hotter? You want enough fuel To keep it cool, but not too much to get better efficiency. I learned this by tuning carburetors. I may be wrong but with the same amount of pressure at a cooler temp replaces the extra fuel you need to lower combustion temps?
90 ST185~205
04 Tundra V6 5spd 2wd
TOYOTA JUNKIE
Overtriped
Club Member

Posts: 249
Joined: Wed Aug 01, 2012 12:33 am
Location: Windham, Maine

Re: REFRIGERATED Intercooler-needs input

Postby 4rsnduction » Sat Feb 09, 2013 12:34 am

klue wrote:On the contrary, you would need to run a RICHER air mixture due to the cooler charge containing more oxygen. Secondly, the cooler the charge the poorer the fuel atomization requiring an even more rich mixture


+1
Colder intake charge means the density of the airflow increases....you get more oxygen for the same given space, this need to be offset with fuel, so the colder it gets the more fuel is needed
User avatar
4rsnduction
Club Member

Posts: 452
Images: 0
Joined: Mon Jan 09, 2012 11:57 pm
Location: Sydney, Australia
