Postby autojumbled » Thu Aug 13, 2020 7:11 am

November 24 2019

This curse word car!

Its taken me weeks to get the various bits off and prep to refit all the the new parts before getting to the new cam belt.
Now I've finally managed to fit the new water pump and thermostat alongside cleaning up the area as I go after it took quite a while to get a retaining screw out that holds the pump to the rest of the assembly. Had to remove the whole assembly in order to finally get it loose.


Anyway, putting new bits on and fit the cam belt tensioner pulley, torquing it up and it all went loose - thought i'd sheared the bolt. Hadn't even reached the correct torque but nope - pulled the threads out the engine instead!



There's no where near enough room with the engine in to be able to re-drill/tap the thread, the engine is going to have to be dropped which is a right PITA.
I've been thinking though that i could probably remove the head for less effort - I want to fit a metal head gasket anyway.

For reference, it's this bolt (not my engine pictured, sadly) - right in the thick of things [img alt=":(" class="smile" src="//storage.proboards.com/forum/images/smiley/sad.png"]

Members don't see the above ad. Register now - it's free!
autojumbled
Club Member

Posts: 48
Joined: Wed Jun 11, 2014 9:15 am
Location: Winchester, UK

Re: autojumbled ST185 narrow body

Postby autojumbled » Thu Aug 13, 2020 7:13 am

April 6 2020

Didn't realise the cam belt snapped in November! Time has flown by and I've still not fixed it.

Made some progress since last update though as I decided to bite the bullet and pull the whole head off in order to get at the stripped thread. Its now been sat headless for a couple months and I've not had the inclination to put it back together, until this weekend.

Engine block face got a clean up in preparation for putting everything back together....

Before:

After:

Spotted some damage to number 4 piston whilst cleaning up too:

Can't see any damage to the head or valves and the cylinder also appears intact with no scratches.
I've no intention of replacing pistons so it'll go back together in this state.

Need to order up gaskets, head bolts, new exhaust manifold studs etc etc so I can put the damned thing back together now.
autojumbled
Club Member

Posts: 48
Joined: Wed Jun 11, 2014 9:15 am
Location: Winchester, UK

Re: autojumbled ST185 narrow body

Postby autojumbled » Thu Aug 13, 2020 7:15 am

August 4 2020

Being a tinkerer, I am unable to just bolt this thing back together and call it done.
As I've been going along with this cam belt repair I've tried to tidy and replace stuff where I can, especially where it would be a struggle to do so at a later date.

Last update I had the head off and I've since helicoiled the stripped thread that was the cause of the eventual tear-down. This then extended into helicoiling a couple of exhaust manifold stud holes as some of the old studs needed drilling out because they sheared when removing - sent the head off to machine shop to sort that and check the head to make sure it was flat.
Everything has had a de-grease, wire wheel and paint where possible, too - even if this thing doesn't work when I eventually get it back together, at least it'll look a million times less crusty.


Pricing up new gaskets and whatnot I came to the conclusion it would be better to get the full engine overhaul gasket kit - this has led to replacing the valve stem seals which wasn't a job I had planned. Also replaced cam shaft oil seals and the crank oil seal.
Opted for a Rev3 engine Toyota OEM MLS head gasket as they fit straight on the older Rev2 3S-GTE - definite improvements to be had there for future 'more boost' plans.

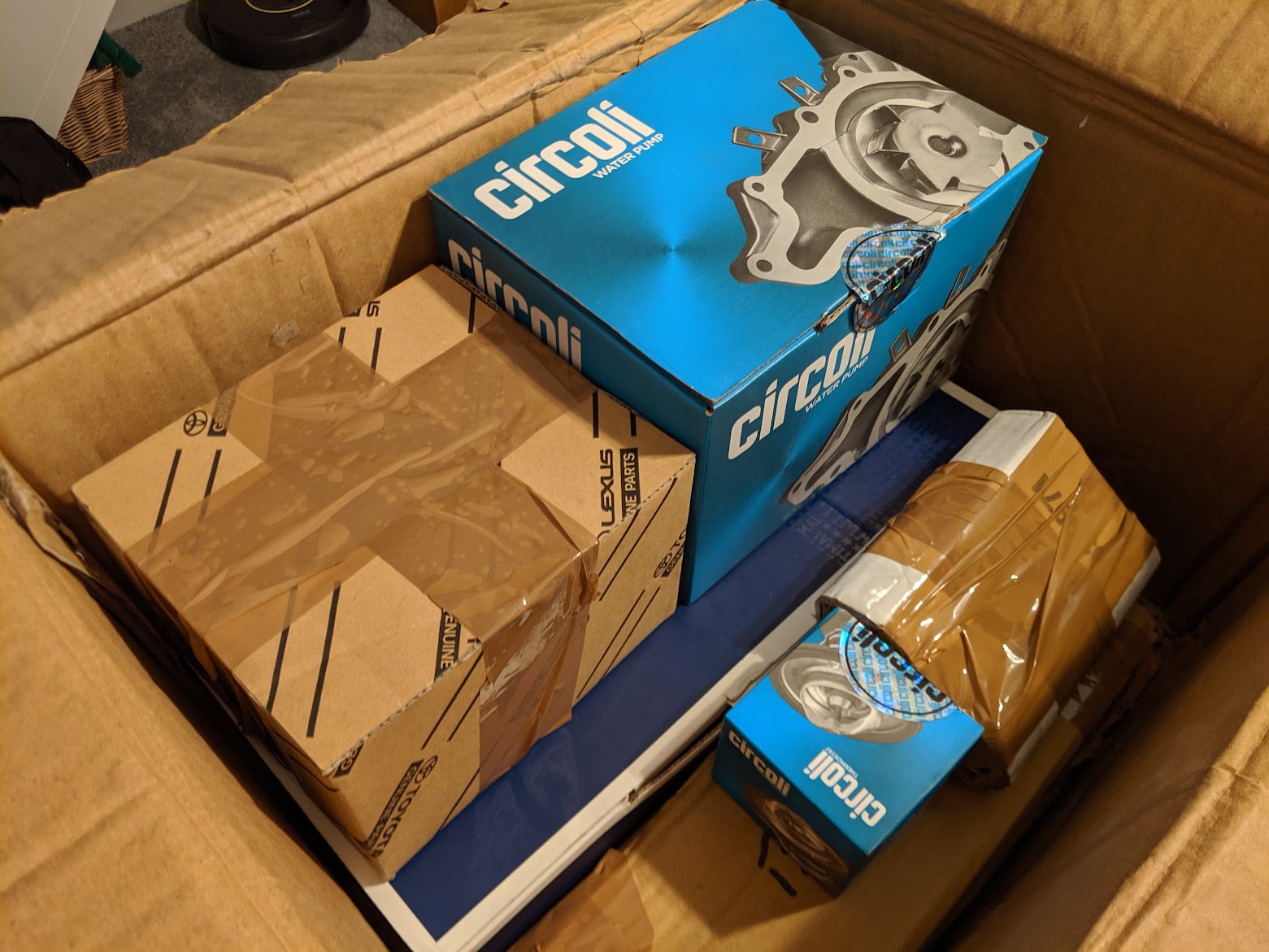

Parts!

autojumbled
Club Member

Posts: 48
Joined: Wed Jun 11, 2014 9:15 am
Location: Winchester, UK

Re: autojumbled ST185 narrow body

Postby autojumbled » Thu Aug 13, 2020 7:22 am

Putting things back together.....

Head back together with new exhaust manifold studs, valve stem seals, cam shaft oil seals, injector seals and a new overhauled distributor.
Everything de-greased to finally rid the engine bay of the years of weeping gaskets and seals. Intake manifold wire wheeled to celan that up and a couple bits painted.


This was after I stretched the bolts securing the hydraulic tensioner as well - I'm going to chuck my torque wrench in the bin and pick up a new one as I clearly over-torqued them. This is the same wrench I was using to tighten the pulley bolt that stripped the threads in the head.....


Other bits were de-greased or wire-wheeled, soaked in Evaporust and painted..



Head back on. New water pump, new idler pulleys and tensioner, along with the new cam belt (and ancillary belts).
Pain in the Image that job was, getting everything lined up with timing markings and having enough slack to get the belt on. I even went so far as to get a new bearing for the alternator belt tensioner pulley as it felt a little crunchy - measured that up and grabbed whatever came up in that size off ebay.


Another job not on the list but again, I was buying parts from BRD so chucked them on the order.
Gear linkage bushes replaced with new poly items and a new 'sugar cube' to smooth out the gear changes.


aaaaand another thing I wasn't going to do is the alternator replace. I was ordering bits from GT4-Play so added it to the list whilst I was there [img src="//storage.proboards.com/forum/images/smiley/rofl.png" class="smile" alt="(rofl)" style="max-width:100%;"]
The contacts on the original were rusted through and I thought may as well!



Everything back on so far, only drama was getting the exhaust manifold and turbo combo back on thanks to a slightly wonky re-drilled manifold stud. It may have been me when fitting but it just seemed easier if I removed a couple of the studs, hung the manifold on the 2 I left in-situ and then refit the remaining studs.

Did some tidying of the loom as I refit it - some of the electrical tape and wrap was looking a little frayed and grotty so that's been re-taped.

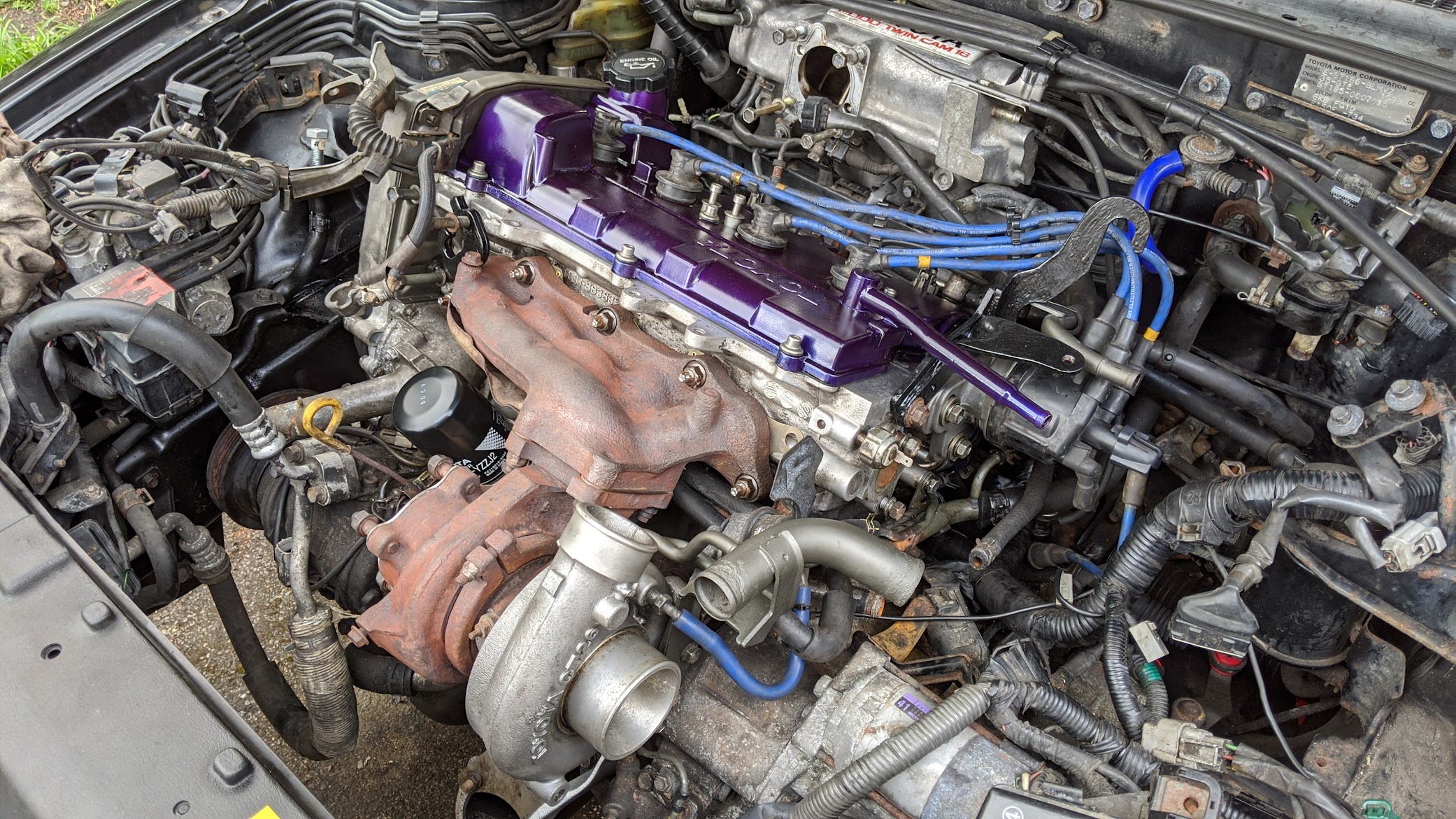

Fresh coat of VHT purple on the cam cover as well (in case you couldn't tell!) [img src="//storage.proboards.com/forum/images/smiley/rofl.png" alt="(rofl)" class="smile"]

autojumbled
Club Member

Posts: 48
Joined: Wed Jun 11, 2014 9:15 am
Location: Winchester, UK

Re: autojumbled ST185 narrow body

Postby autojumbled » Thu Aug 13, 2020 7:23 am

When I was refitting the cam belt I was raising the engine up and down on a jack and stupidly forgot to disconnect the front engine mount and by not doing so, I tore the rubber mount.
I've now replaced this with a poly mount from BRD.

Also from BRD, a new decat pipe. The old pipe had a crack in it and the internal wastegate catches on the pipe, causing weird boost issues occasionally. I figured whilst I was here I would replace the pipe with anew one that doesn't cause gate fouling. Also has a flexi section to hopefully minimise cracking.

autojumbled
Club Member

Posts: 48
Joined: Wed Jun 11, 2014 9:15 am
Location: Winchester, UK

Re: autojumbled ST185 narrow body

Postby autojumbled » Thu Aug 13, 2020 7:24 am

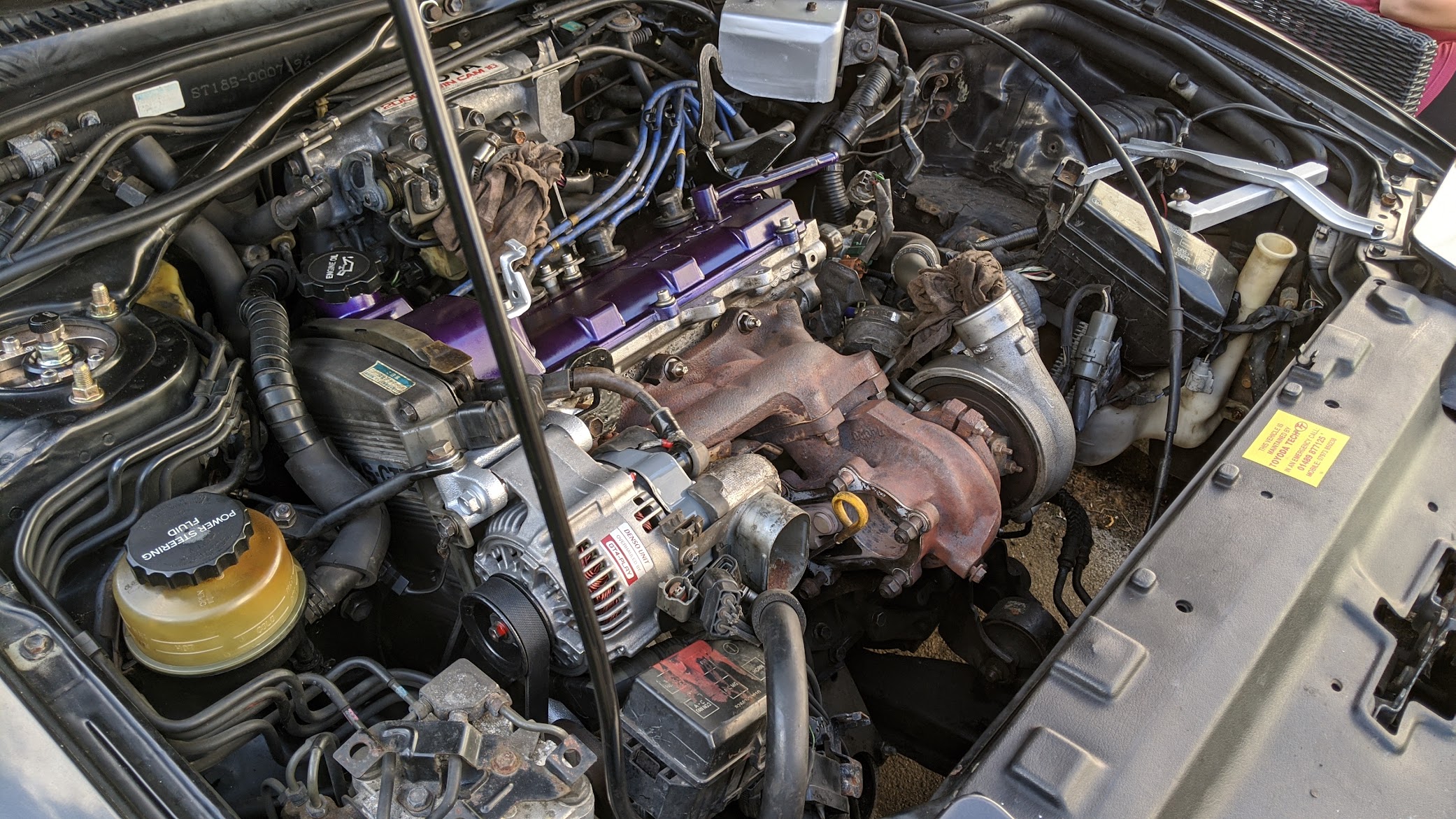

It only bloody runs!! Well chuffed.
