Project Lazarus: Pulled from the Ground; Save from the Grave

Talk about your project car here

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Tue May 18, 2021 11:02 am

underscore wrote:And I thought the people who tried to steal mine were inept. Maybe they're cousins or something. Honestly I'd just grab a whole new door since that one is a bit mangled around the handle area anyways.


No kidding, thieves can get bent! Anyways, I actually have a whole new door but I need to get the door unlatched somehow in order to take it off the car. I have no idea how to get the door off since the entire mechanism is off kilter. I have a new latch from the parts car just in case this door can get opened. Any ideas or tricks to open the door would be great :(
Members don't see the above ad. Register now - it's free!
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Wed May 19, 2021 11:34 am

So after modifying a shower curtain rod and fighting with the son of a gun for a few hours, I got it! Here's the picture of the pulled door latch vs the old one. I had little faith in this but it finally budged.

This is me pointing to the pin that releases the door latch.


New latch and how it's supposed to look:


And here's the old mangled one I took out of the car. anyways, victory!
Old latch (broken lock mech and misaligned out of the latch key)
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Thu May 20, 2021 2:02 am

Now that I was able to open the passenger door, time for HVAC love and the most disgusting possible thing in the world: the HVAC fan. Prepare yourselves, this filled up a 12 gallon ridged shop vac.

Step 1 not bad:

Step 2 uh oh:

Step 3 it gets worse:

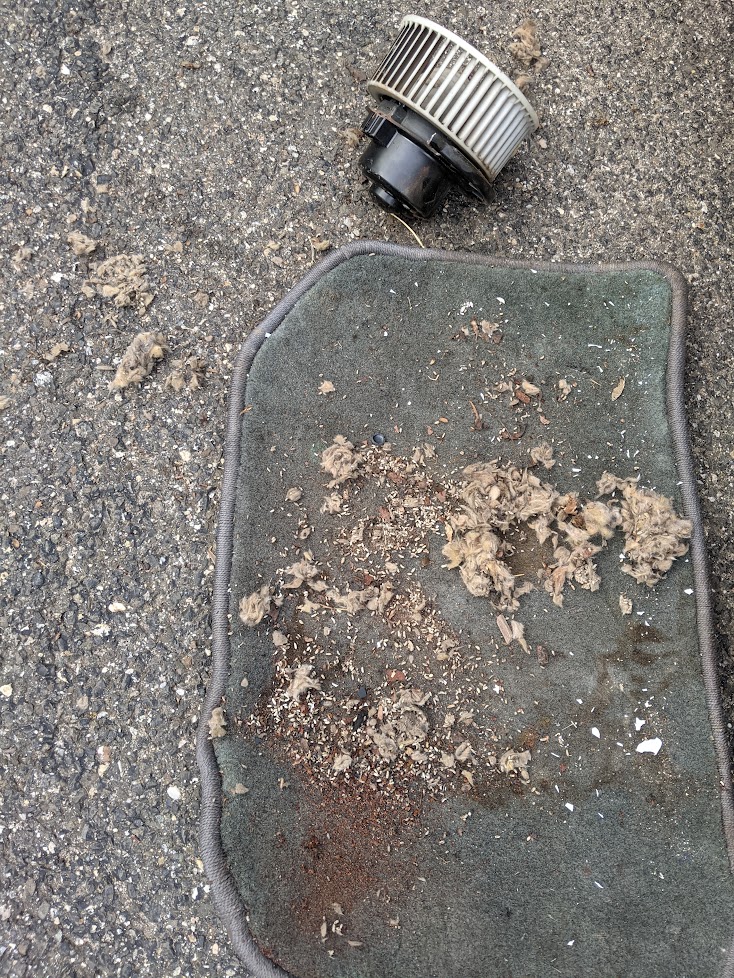

Step 4 taj mahal for mice. Yes, it was through the entire HVAC system:

I need to shower now.
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Tue Jun 15, 2021 1:44 am

Not many updates with the car as life is busy again, but brought Lazzie on the longest trip ever on a very fun car meet. Here's one picture that I got:


Might as well enjoy it while she's running decent!
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Tue Jun 22, 2021 4:46 pm

Well after the trip the success was short lived. Might be replacing the rear diff and using it as a spare...

1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Tue Jul 27, 2021 12:59 pm

Went away for a few weeks, came back took the car for a short drive and the alternator blew out haha. Research says that the alternator is not backwards compatible with a ST182 2.2l. Is this correct? I have a spare kicking around, was wondering if it was before I spent the time installing it or spent the money purchasing a new 3sgte alternator.
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby underscore » Tue Jul 27, 2021 4:10 pm

When I tried to toss an alt from a 1993 Celica 5SFE onto my GTFour it was different, but you might be able to make it work by swapping the plug on the harness. Just make sure it has a high enough amperage rating.
★ 1991 GTFour RC ~ "Rebel Scum" ★
Build thread http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=44216
underscore
GTFour God

Posts: 4669
Images: 0
Joined: Mon Apr 09, 2007 11:29 pm
Location: Kelowna, BC

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Mon Aug 02, 2021 11:46 am

underscore wrote:When I tried to toss an alt from a 1993 Celica 5SFE onto my GTFour it was different, but you might be able to make it work by swapping the plug on the harness. Just make sure it has a high enough amperage rating.

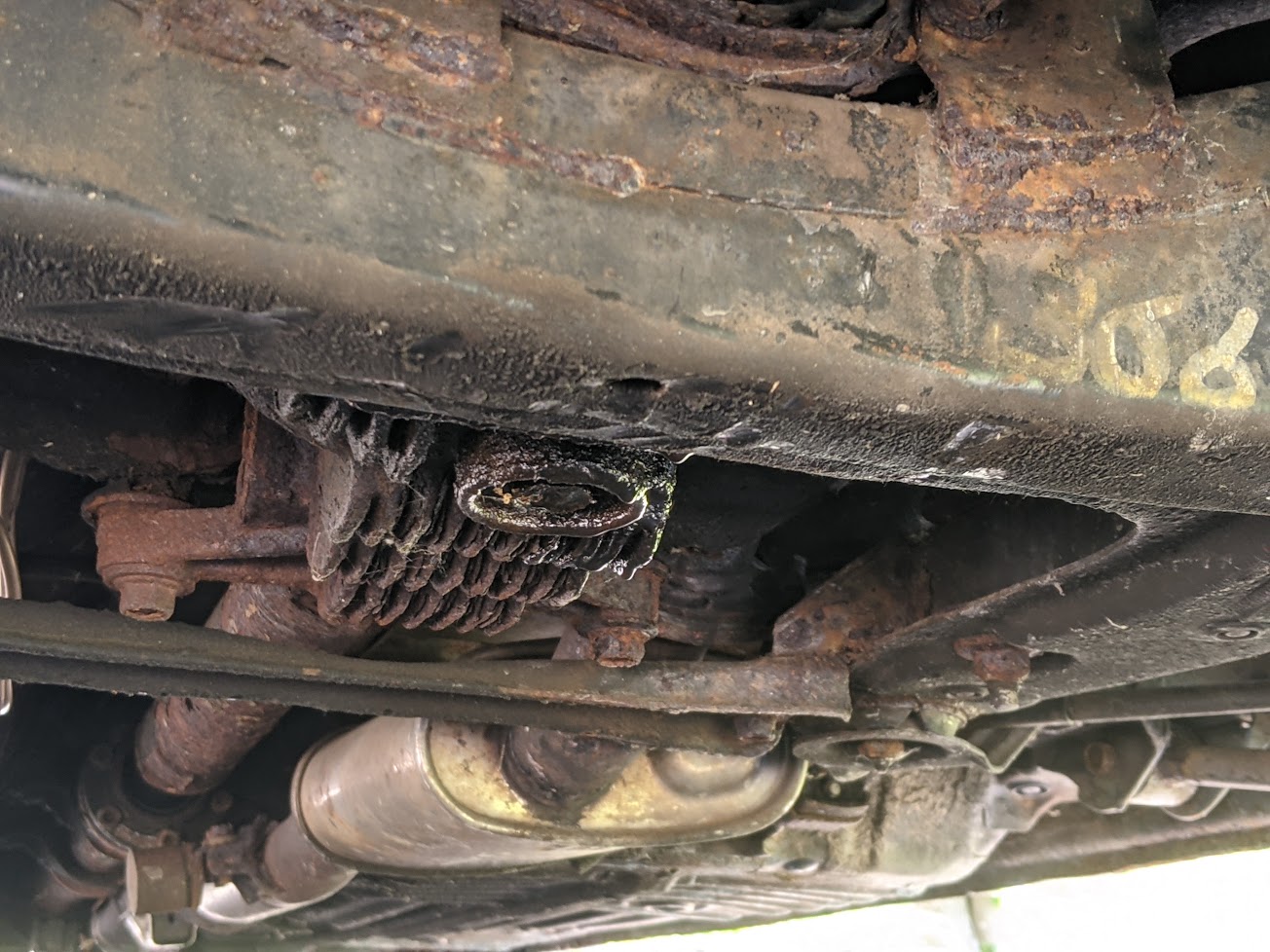

Well it appears the 5f alternator is a direct drop in, which is surprising. However, it's still not charging the system, which is ultra frustrating. No need to do anything as the plugs were all universal. I believe this whole time I've been running directly off battery! I'm not getting ANY amps from the alternator or even the connection to the battery. Something is whacky with wiring, my guess is a bad ground. Anyways, this is what I'm looking at (pictures):







No dice :(

And the documents curtesy of Bruce (Tecker185)



Still no dice, I believe bad wiring but who knows :shrug: i'll have time to look at it this afternoon
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby underscore » Mon Aug 02, 2021 4:55 pm

Interesting, mine was completely different at the plug and internally.

Check for continuity between the alternator output and the positive terminal. If there isn't any, or there's lots of resistance, check the master fuse between them (100A). It's bolted in from the bottom of the fuse box so don't try to just pull it out. I see that the ground wire is on the timing cover for some reason. It might work fine there, but I'd move it back since you're having problems.
★ 1991 GTFour RC ~ "Rebel Scum" ★
Build thread http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=44216
underscore
GTFour God

Posts: 4669
Images: 0
Joined: Mon Apr 09, 2007 11:29 pm
Location: Kelowna, BC

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Tue Sep 28, 2021 1:27 pm

It's been a little while. I decided to get the charging issue sorted out. Bought a new cheapo alternator since I'll most likely be swapping the motor, didn't want anything fancy. Swapped the GT-S alternator out, put in the new one. I grounded the motor and wham - amps are working. Took the car to go shopping around town. 30 miles on it, all is well. Going to hold stock for a while, but I'm happy as long as she's running.

New alternator, slight crack in housing where stamp is, but a non-issue


and car on:


Next up is putting in the cloth interior and taking out the leather to get refurb. Anybody happen to have a nice set of stock carpeting? lol
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby alltracman78 » Wed Sep 29, 2021 4:40 pm

Tippo wrote:
underscore wrote:When I tried to toss an alt from a 1993 Celica 5SFE onto my GTFour it was different, but you might be able to make it work by swapping the plug on the harness. Just make sure it has a high enough amperage rating.



Well it appears the 5f alternator is a direct drop in, which is surprising. However, it's still not charging the system, which is ultra frustrating. No need to do anything as the plugs were all universal. I believe this whole time I've been running directly off battery! I'm not getting ANY amps from the alternator or even the connection to the battery. Something is whacky with wiring, my guess is a bad ground.

And the documents curtesy of Bruce (Tecker185)


Still no dice, I believe bad wiring but who knows :shrug: i'll have time to look at it this afternoon


5S and 3S have the same basic alternator. The studs on the end are different, for the 3S cooling elbow. It's possible there's a slight difference in amp rating, for the voltage regulator. I don't remember. There also might have originally be different bearings or other internals for higher RPM and heat in the 3SGTE one.
The reason the connector looks different in the manual is they consider that short extra harness the 3SGTE has to be part of the alternator. IIRC way back when if you bought a new 3SGTE one from Toyota it had the cooling elbow and extra harness as part of it. That little harness is actually different for the pre and post revision engines. But the alt itself is the same.

Nice job sorting that out. Fixing other peoples mistakes on an old car is such a huge PITA.

Yours is the same color as mine. Maybe next spring if mine gets over it's agoraphobia (it's been covered in the garage for years) and yours is running we can go for a cruise together or something. Don't hold me to that right now though.
alltracman78
GTFour God

Posts: 4799
Images: 0
Joined: Mon Aug 09, 2004 9:04 am
Location: Anywhere But There

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Wed Oct 06, 2021 11:48 am

alltracman78 wrote:
5S and 3S have the same basic alternator. The studs on the end are different, for the 3S cooling elbow. It's possible there's a slight difference in amp rating, for the voltage regulator. I don't remember. There also might have originally be different bearings or other internals for higher RPM and heat in the 3SGTE one.
The reason the connector looks different in the manual is they consider that short extra harness the 3SGTE has to be part of the alternator. IIRC way back when if you bought a new 3SGTE one from Toyota it had the cooling elbow and extra harness as part of it. That little harness is actually different for the pre and post revision engines. But the alt itself is the same.

Nice job sorting that out. Fixing other peoples mistakes on an old car is such a huge PITA.

Yours is the same color as mine. Maybe next spring if mine gets over it's agoraphobia (it's been covered in the garage for years) and yours is running we can go for a cruise together or something. Don't hold me to that right now though.


You are correct! I kept the old alternator with the studs for the elbow (although I broke the tip of one), you can take out the normal screws and put the studs on for the cooler. Works like a charm! However, I believe the voltages are slightly different as you were mentioning, unless the 5f was toast, it wasn't charging the car. In addition to the cooler studs, there is a missing clip / harness holder as well. If you see the pictures, I had to transplant that. It helps big time from the harness getting into the fan or touching the downpipe.

I'm totally down for a cruise if you're in the northeast. Would be cool to get a few of us together, so few ST185 showed up at the Bear Mountain meet. In fact, there were more ST205 / half-tracs lol.
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Roreri » Wed Oct 06, 2021 9:56 pm

Took me a little while to get around to reading this, but kudos. You're a brave man, but AllTracs tend to inspire.

"Would be cool to get a few of us together, so few ST185 showed up at the Bear Mountain meet. In fact, there were more ST205 / half-tracs lol."

That doesn't surprise me. There are three sixth gen Celicas that I encounter rather frequently--one of them actually resides within 200 yards of where I live--but I do not run across fifth gen Celicas of any kind. I've seen one, several months ago. Whereas a 1999 Celica is as old as the F-150 I own and can daily, adding another six to nine years to that incurs a lot of fatalities, it seems.

Given the condition you got him, it's quite the job you've done even getting Lazarus running. Lots of restoration and stabilization work that can be done before improvements, still, I bet. I had some ideas I wanted to try with mine, when I got it, but I had some expenses stabilizing it, so now I'm leaving it like it is for a while too.
Roreri
Club Member

Posts: 147
Joined: Wed Aug 25, 2021 8:12 pm
Location: Alexandria, VA

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby Tippo » Fri Oct 08, 2021 7:28 pm

Roreri wrote:Took me a little while to get around to reading this, but kudos. You're a brave man, but AllTracs tend to inspire.

"Would be cool to get a few of us together, so few ST185 showed up at the Bear Mountain meet. In fact, there were more ST205 / half-tracs lol."

That doesn't surprise me. There are three sixth gen Celicas that I encounter rather frequently--one of them actually resides within 200 yards of where I live--but I do not run across fifth gen Celicas of any kind. I've seen one, several months ago. Whereas a 1999 Celica is as old as the F-150 I own and can daily, adding another six to nine years to that incurs a lot of fatalities, it seems.

Given the condition you got him, it's quite the job you've done even getting Lazarus running. Lots of restoration and stabilization work that can be done before improvements, still, I bet. I had some ideas I wanted to try with mine, when I got it, but I had some expenses stabilizing it, so now I'm leaving it like it is for a while too.



Definitely takes some inspiration to get something rough going. I've seen a lot worse get turned around - since she's got a good base I consider myself lucky here, even with the amount of miles on it... speaking of miles, here's how many she has:


There's a loooong long road for this car, so it's just the beginning. Just hoping my health, my job and the economy stays afloat so I can keep Lazzy for the long run.
1992 SW20 MR2 Turbo 4th Gen 3SGTE Swap. Aquamarine Pearl. Project "Priscilla"
1992 ST185 Celica All-Trac Turbo. Teal Metallic. Project "Lazarus"
1990 ST185 Cellica All-Trac Turbo. Grey Metallic. Project "Mirum"
User avatar
Tippo
Club Member

Posts: 769
Joined: Thu Feb 21, 2008 3:31 am
Location: CT

Re: Project Lazarus: Pulled from the Ground; Save from the G

Postby simple » Fri Oct 08, 2021 7:52 pm

272k damn!!!
