ST205 Front Brakes
Re: ST205 Front Brakes
I'm working on this swap and I need to do brake lines. I don't have any 185 lines ( I know they may be short). The 205 lines I have won 't work.
My question - Does any one know if the goodridge 185 SS lines are slightly longer than stock or if there are other lines that are longer (maybe another Toyota model).
I've looked and can't seem to find anyone else talking about this except saying the 185 ones are too short......
Thanks,
My question - Does any one know if the goodridge 185 SS lines are slightly longer than stock or if there are other lines that are longer (maybe another Toyota model).
I've looked and can't seem to find anyone else talking about this except saying the 185 ones are too short......
Thanks,
Members don't see the above ad. Register now - it's free! | |
-
dkdmonk - Club Member
- Posts: 108
- Images: 12
- Joined: Wed Jan 28, 2009 7:56 pm
- Location: Near St Louis
Re: ST205 Front Brakes
IMO its the offset of the caliper to disc with respect to the ball joint that is the main issue.
Having gone through the ST205 caliper option, it just isn't as easy as swapping over due to the superstrut design.

Looking at Kris'/gt4dc photo of the superstrut, the location of carious components means the disc has increased offset, therefore the caliper is also has increased offset compared to macpherson strut.
At the end of the day, you need to decrease the offset of the disc by using spacers and then match the caliper to mount properly based on where you have offset the disc. On MacPherson strut, the disc has to be offset to clear the ball joint.
In the end, I just gave up, got wrx STI discs, got a hubcentric ring made up, got some wilwood superlites with a bracket, got new lines made up and it was done. I get clearance of the ball joint as STI disc is lower offset.
st205 disc + st205 caliper
I don't have to modify a consumable aka the disc, to fit the st205 caliper when mounted on the front of the hub.
I don't have to get a spacer and longer studs to space st205 discs out.
wrx 294mm disc + st205 caliper
No pad spacers due to smaller disc width 24mm vs 32mm
No overhang of st205 pad to small disc cirumference
No spacer for decreased disc offset
Altezza/IS300 disc + st205 caliper
No re-drilling of disc to 5x100 vs factory 5x114.3
No machining of caliper or hub mounting point (need to shave 2mm off either)
Pay for solutions that work up front
Don't mod consumables or compromise integrity of components
If there was a cheap solution out of the toyota parts bin, then fine, but everything that uses the st205 caliper is a compromise in my books, so I just saved some coin, specified what I wanted to engineer and he sent me a kit. Means I don't have 'CELICA' on the side of my calipers, but meh - I have good brakes with good engineering and consumables I can buy off the internet - easy peasy when the hard work is done up front
Having gone through the ST205 caliper option, it just isn't as easy as swapping over due to the superstrut design.

Looking at Kris'/gt4dc photo of the superstrut, the location of carious components means the disc has increased offset, therefore the caliper is also has increased offset compared to macpherson strut.
At the end of the day, you need to decrease the offset of the disc by using spacers and then match the caliper to mount properly based on where you have offset the disc. On MacPherson strut, the disc has to be offset to clear the ball joint.
In the end, I just gave up, got wrx STI discs, got a hubcentric ring made up, got some wilwood superlites with a bracket, got new lines made up and it was done. I get clearance of the ball joint as STI disc is lower offset.
st205 disc + st205 caliper
I don't have to modify a consumable aka the disc, to fit the st205 caliper when mounted on the front of the hub.
I don't have to get a spacer and longer studs to space st205 discs out.
wrx 294mm disc + st205 caliper
No pad spacers due to smaller disc width 24mm vs 32mm
No overhang of st205 pad to small disc cirumference
No spacer for decreased disc offset
Altezza/IS300 disc + st205 caliper
No re-drilling of disc to 5x100 vs factory 5x114.3
No machining of caliper or hub mounting point (need to shave 2mm off either)
Pay for solutions that work up front
Don't mod consumables or compromise integrity of components
If there was a cheap solution out of the toyota parts bin, then fine, but everything that uses the st205 caliper is a compromise in my books, so I just saved some coin, specified what I wanted to engineer and he sent me a kit. Means I don't have 'CELICA' on the side of my calipers, but meh - I have good brakes with good engineering and consumables I can buy off the internet - easy peasy when the hard work is done up front
GT Four Adovansu "I want to enjoy the powerful and nimble agility behavior."
Elephant: https://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=26687
Pearl: https://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=49212&p=480922
Elephant: https://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=26687
Pearl: https://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=49212&p=480922
-
DeeCee - Established Member
- Posts: 1148
- Joined: Mon Mar 24, 2008 8:41 am
- Location: New Zealand
Re: ST205 Front Brakes
Dee
Thanks for all that.
So challenges aside.
I'm looking for info on brake lines only.
Anyone else????
PS I already met all the other stuff
Rotors 303m diameter
Shaved 1mm off both hub and caliper
5mm spacer under rotor for tie rod clearance
10mm spacer for 7gen gts wheel clearance
15mm lnger studs intalled with new bearings
Shaved backing plate
Good friend with time and bridgeport machine
I did this because I wanted to. Later when I need new rotors maybe I'll do something else
Thanks for all that.
So challenges aside.
I'm looking for info on brake lines only.
Anyone else????
PS I already met all the other stuff
Rotors 303m diameter
Shaved 1mm off both hub and caliper
5mm spacer under rotor for tie rod clearance
10mm spacer for 7gen gts wheel clearance
15mm lnger studs intalled with new bearings
Shaved backing plate
Good friend with time and bridgeport machine
I did this because I wanted to. Later when I need new rotors maybe I'll do something else
-
dkdmonk - Club Member
- Posts: 108
- Images: 12
- Joined: Wed Jan 28, 2009 7:56 pm
- Location: Near St Louis
Re: ST205 Front Brakes
185 Goodridge SS lines a little too short, but if do not attach to the shock absorber bracket, everything is ok...
st185 Carlos Sainz 3258#5000
Saulius
Saulius
-
sheikhas - Club Member
- Posts: 78
- Joined: Fri Mar 04, 2005 10:59 am
- Location: Europe, Lithuania, Ignalina
Re: ST205 Front Brakes
Okay,
That is what I thought.
Thank you and I'm off to see what else I can find
That is what I thought.
Thank you and I'm off to see what else I can find

-
dkdmonk - Club Member
- Posts: 108
- Images: 12
- Joined: Wed Jan 28, 2009 7:56 pm
- Location: Near St Louis
Re: ST205 Front Brakes
Okay,
Pulled a few lines off for measuring -
93 Celica GT - looks to be about 18 inches
97 Celica GT - slightly over 18 inches (same as several Camry's of same gen)
The hose has a metal tab they use to bolt to the strut bracket, would have to straighten it out and drill hole in
strut tower bracket where the hose mounts
97 Sienna - Looks like 20 inches, has the same tab as above but hose seems to be long enough to work.
Tried to look for a mid/late 90's taco but couldn't find any Toy pickups there at all? Online looks like they might have threaded 10X1.0 fitting on both sides (no banjo)
Anybody know who makes braided lines for a Sienna?
Anybody ever deal with this company - Henry's Engineering http://www.hphose.com/BrakeCatalog1.pdf. Looks like I can send them measurements and they make what I need
May go back and pull the other Sienna line to I can hook up brakes for now.
Anyone have a picture of the 185 goodridge lines installed (not in the strut mount bracket) with 205 front brakes? I have another car with braided lines up front, not held in strut mounts brackets, but it doesn't have drive axles up front
Pulled a few lines off for measuring -
93 Celica GT - looks to be about 18 inches
97 Celica GT - slightly over 18 inches (same as several Camry's of same gen)
The hose has a metal tab they use to bolt to the strut bracket, would have to straighten it out and drill hole in
strut tower bracket where the hose mounts
97 Sienna - Looks like 20 inches, has the same tab as above but hose seems to be long enough to work.
Tried to look for a mid/late 90's taco but couldn't find any Toy pickups there at all? Online looks like they might have threaded 10X1.0 fitting on both sides (no banjo)
Anybody know who makes braided lines for a Sienna?

Anybody ever deal with this company - Henry's Engineering http://www.hphose.com/BrakeCatalog1.pdf. Looks like I can send them measurements and they make what I need
May go back and pull the other Sienna line to I can hook up brakes for now.
Anyone have a picture of the 185 goodridge lines installed (not in the strut mount bracket) with 205 front brakes? I have another car with braided lines up front, not held in strut mounts brackets, but it doesn't have drive axles up front

-
dkdmonk - Club Member
- Posts: 108
- Images: 12
- Joined: Wed Jan 28, 2009 7:56 pm
- Location: Near St Louis
Re: ST205 Front Brakes
You can order longer lines from revolution.
http://store.revolutionbrake.com/
You can also make your own lines. Earls makes ends that fit standard AN sizes. You can order braided lines in the length you need then use the proper AN adapters to the brake line and hard lines.
EDIT: Earls also makes lines. http://www.summitracing.com/parts/ear-6 ... /overview/
I used a set of their ends to run directly to the caliper instead of a banjo bolt for my 205 rears, and I had to get an adapter for my wilwood brake lines to fit the hard line for my front brakes.
http://store.revolutionbrake.com/
You can also make your own lines. Earls makes ends that fit standard AN sizes. You can order braided lines in the length you need then use the proper AN adapters to the brake line and hard lines.
EDIT: Earls also makes lines. http://www.summitracing.com/parts/ear-6 ... /overview/
I used a set of their ends to run directly to the caliper instead of a banjo bolt for my 205 rears, and I had to get an adapter for my wilwood brake lines to fit the hard line for my front brakes.
Coldiron
92 st185 (205 swap) | 03 350Z Track (sold) | 13 Pilot | 17 Mazda3
www.noritoy.com | noritoy.deviantart.com | http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=19891
92 st185 (205 swap) | 03 350Z Track (sold) | 13 Pilot | 17 Mazda3
www.noritoy.com | noritoy.deviantart.com | http://www.alltrac.net/phpBB2/viewtopic.php?f=44&t=19891
-
CMS-GT4 - GTSilver Member
- Posts: 10467
- Images: 7
- Joined: Mon Aug 09, 2004 9:12 pm
- Location: St Louis Area (IL)
1992 Toyota Celica
Re: ST205 Front Brakes

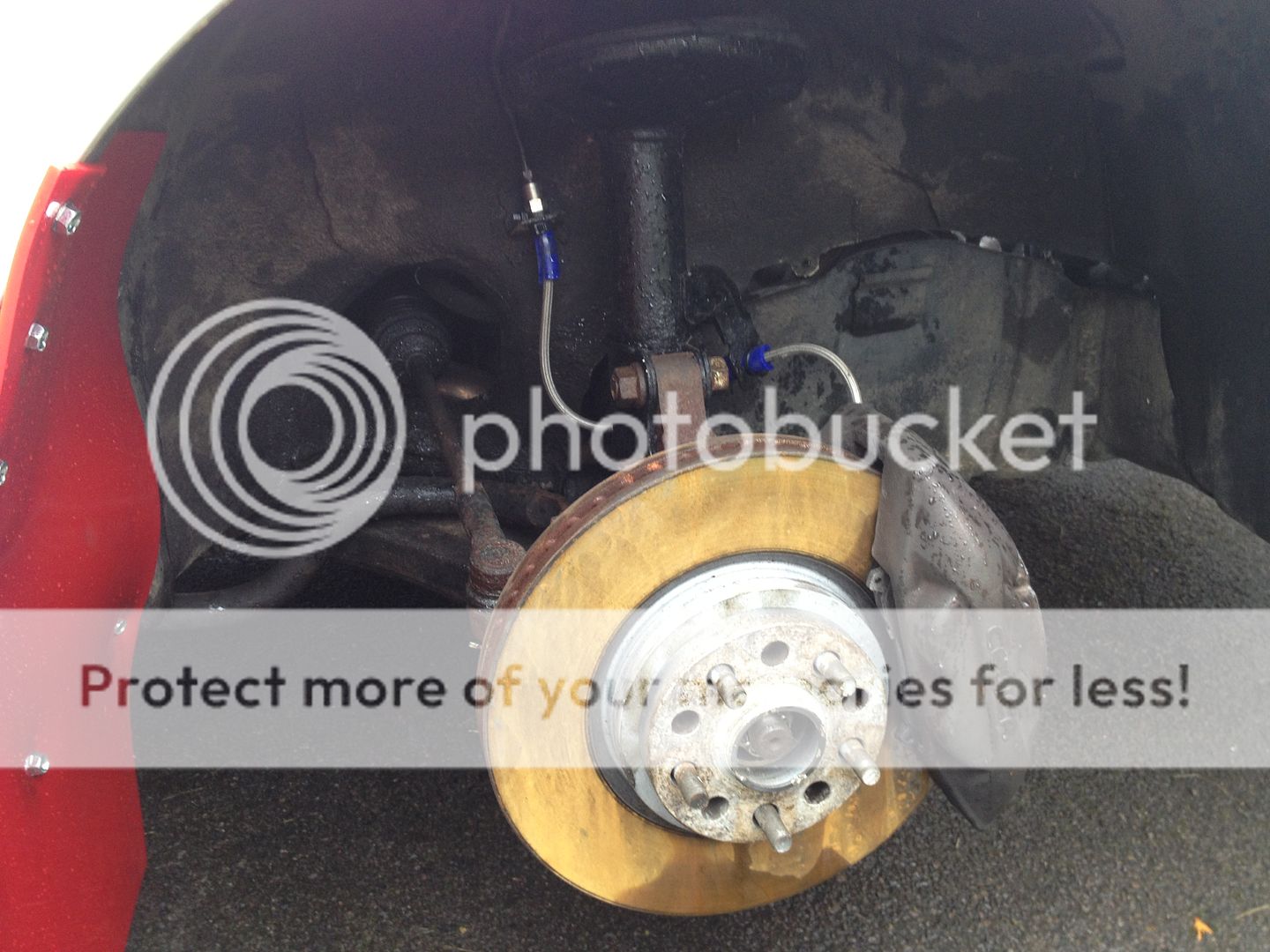

I've figured it out ! Took three years, but I got it tonight. No bs, practically all bolt on!
feb. 1990 alltrac red one: fun machine http://tinyurl.com/Tubasteve
5x114 conversion: http://tinyurl.com/nu3qnez

5x114 conversion: http://tinyurl.com/nu3qnez
-
tubasteve - Established Member
- Posts: 1149
- Joined: Tue Apr 01, 2008 6:48 pm
- Location: temecula, ca(951)
Re: ST205 Front Brakes
Ohh that looks nice ^^
Here's mine. Lexus IS200 296X32 re-machined PCD discs with 205 calipers. No spacers etc needed (but don't ask me how)

Here's mine. Lexus IS200 296X32 re-machined PCD discs with 205 calipers. No spacers etc needed (but don't ask me how)

89' JDM ST185 Lightweight
- squarepant5
- Newbie
- Posts: 16
- Joined: Sun Nov 18, 2012 1:54 pm
Re: ST205 Front Brakes
THATS THE ISSUE I HAD WAS GETTING THOSE TYPE ROTORS EASILY OVER HERE.
feb. 1990 alltrac red one: fun machine http://tinyurl.com/Tubasteve
5x114 conversion: http://tinyurl.com/nu3qnez

5x114 conversion: http://tinyurl.com/nu3qnez
-
tubasteve - Established Member
- Posts: 1149
- Joined: Tue Apr 01, 2008 6:48 pm
- Location: temecula, ca(951)
Re: ST205 Front Brakes
bolting the stock 205 caliper straight to the stock 185 hub is incredibly dangerous.
If you can't take some proper measurements and figure it out yourself then you shouldn't be doing it.
You must use an adapter to go from the hub to the caliper.
If you can't take some proper measurements and figure it out yourself then you shouldn't be doing it.
You must use an adapter to go from the hub to the caliper.
1992 Red GT-FOUR RC 626•1800

1992 White turbo4WD

1992 White turbo4WD
-
athousandleaves - Established Member
- Posts: 1288
- Images: 0
- Joined: Wed Nov 19, 2008 12:54 pm
- Location: Ontario, Canada
Re: ST205 Front Brakes
Athousandleaves please explain as the 205 caliper is just bolted to a 205 hub from factory. The dangerous part and why I went wilwood was shaving 2mm of the caliper/hub ears
- aus jd 2703
- Established Member
- Posts: 1097
- Joined: Wed Apr 30, 2008 12:02 am
Re: ST205 Front Brakes
205 calipers on a 205 hub is 100% safe.
205 calipers on a 185 hub is dangerous.
Put one of each caliper on a flat surface side by side and you'll see why... And that's only one of about 10 reasons why its unsafe.
I finished designing and made a full kit to bolt the 205 calipers onto the 185 safely with an off the shelf rotor a while ago but ran out of money so I couldn't offer them to members here.
Also with the price of other BBK's coming down I didn't see it to really be worth while for anyone to pursue this modification. You get what you pay for and when it comes to stopping my car, I refuse to go cheap.
205 calipers on a 185 hub is dangerous.
Put one of each caliper on a flat surface side by side and you'll see why... And that's only one of about 10 reasons why its unsafe.
I finished designing and made a full kit to bolt the 205 calipers onto the 185 safely with an off the shelf rotor a while ago but ran out of money so I couldn't offer them to members here.

1992 Red GT-FOUR RC 626•1800

1992 White turbo4WD

1992 White turbo4WD
-
athousandleaves - Established Member
- Posts: 1288
- Images: 0
- Joined: Wed Nov 19, 2008 12:54 pm
